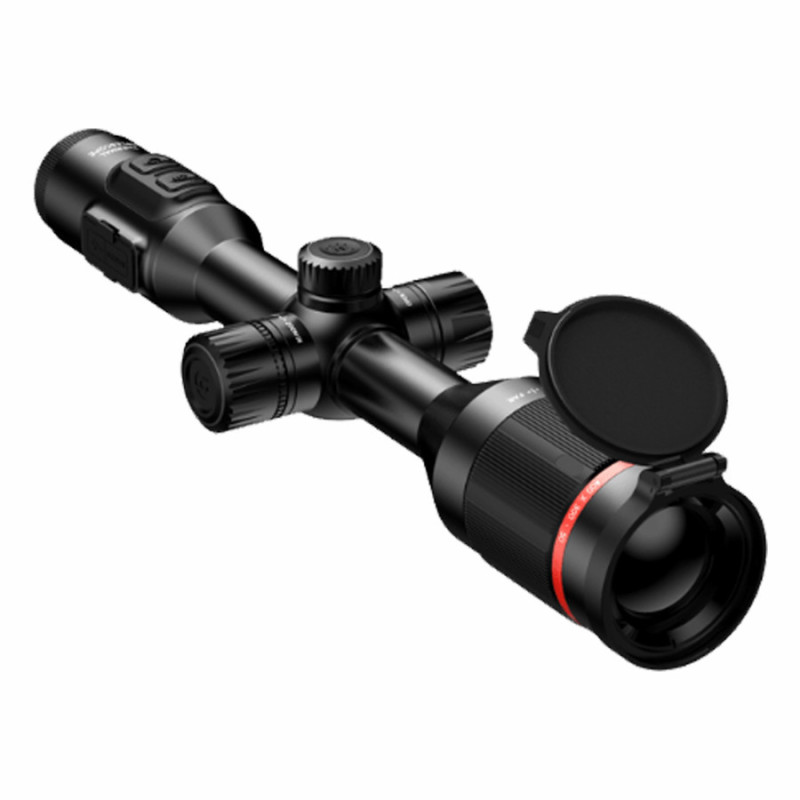

Thermal sight TU420 25 mm, 1.5x-6.5x, 50 Hz, 700 m / 1.7 km
TU420 is a thermal sight with the same design as traditional optical sights. The thermal sight has a 400x300 VOx detector (17μm), a 25mm objective lens and a zoom range from 1.5 to 6.5x. The TU420 can detect a car from 1.7 km and a person from 700 metres. The reticle can easily store 10 different zero profiles.
Thermal image characteristics
- 400x300 VOx detector (pixel size 17μm)
- 50 Hz update rate (real-time image)
- Projected on a 0.39" OLED display (1024x768)
- Various colour palettes including white/black/red/green
- Thermal image is independent of weather conditions, you also have an image e.g. in fog and rain
- Detection distance: 1.7 km (car) and 700 m (person)
- Field of view: 15.5 x 11.6 degrees
Features of the reticle
- Choice of 10 different nets
- Available in 6 different colours and 10 brightness levels
- Zooms in similar to first focal plane optical sights
- Stores 10 zero profiles to use the reticle range directly for different weapons without re-firing
- Zero calibration ranges: 50 / 100 / 200 / 300 / 500m
- Easy manual height/width adjustment on body
- Scope attachment to weapon
- Universal 30 mm tube
- Easy to use on many weapons with the 30 mm mounting rings
Useful features
- Hot Track function, where the cursor is used to highlight animals/people directly
- Stadiametric Range Finder (calculates the approximate distance to the animal or person)
- "Picture-in-Picture mode to further enlarge a small part of the image
- Wi-Fi and Bluetooth to share and view recordings
- When a smartphone/tablet is connected to the speaker, someone else can enjoy everything you see
- Free app (iOS and Android)
User convenience
- Impact resistance: 500G/ 1ms
- IP67 certified: waterproof, dustproof and shockproof
- Extra long run time up to 10 hours using only one 18650 battery (charger + battery included)
- Weighs only 930 grams
- USB-C connection (cable included)
- Certifications: RoHS, CE, FCC, EAC, UN38.3 (battery certificate)
- TU420 User Manual
This sight is designed for both short and medium range shooting. The most popular applications are hunting and tactical use. The advantage of thermal imaging is that you will always have an image regardless of the weather conditions. With thermal imaging, animals can never hide. Because of their body heat, they will immediately appear on your sight display. Even when they are behind bushes that you cannot see with your own eyes. The TU420 is suitable for use at night, dusk and during the day. Since you can store 10 zero profiles, you can easily switch between different guns.
The TU series consists of three models.
Includes:
- 1x thermal rangefinder (25 mm objective)
- 1x lens protection
- 1x eyepiece cover
- 1x storage pouch
- 1x USB-C cable
- 1x Micro-HDMI cable
- 1x 186500 battery
- 1x battery charger
- 1x lens cloth
- 1x user manual
Specification
- Detector type: 400x300 TEC metal encapsulated (17 microns)
- Display quality: 1024x768 OLED (full colour)
- Refresh rate: 50 Hz
- Lens diameter: 25 mm
- Image focus type: manual focus
- Field of view: 15.5 x 11.6 degrees
- Detection distance: short range (max. 500 m), medium range (max. 1000 m)
- Application: Airsoft / paintball, hunting, MIL-SIM, tactical
- Functions: Hot Track, Picture-in-Picture, Range finder (stadiametric), Wi-Fi, Bluetooth
- Colour palettes: hot white, black, red, hot, green, blue
- Usage time: up to 10 hours
- Recording functionality: Photo, Video
- Reticles: Yes (different types and colours)
- Digital Zoom: 1x / 2x / 3x / 4x
- Other functions: adjustable contrast, adjustable brightness
- Weight: 930 grams
- Dimensions: 367 x 107 x 69 mm
- Fasteners included: No: optional 30 mm mounting ring available
- Power supply: 1x 18650 battery (battery + charger included)
- Operating temperature: -30 to +50 degrees Celsius
- Water and shockproof: IP67 (shockproof, submersible)
- Warranty: 2 years
