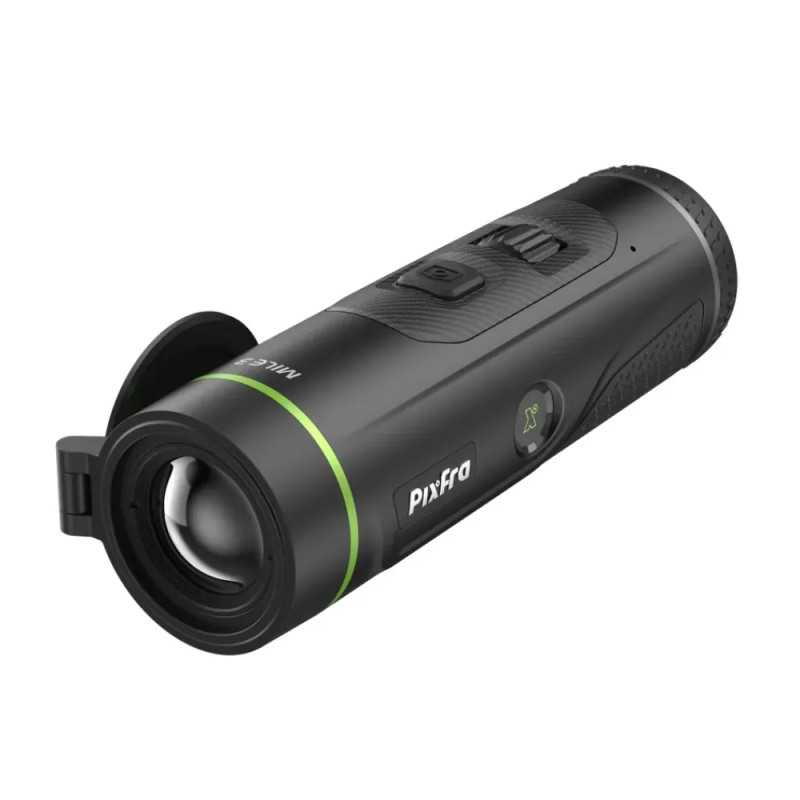

Pixfra PFI-M325 Thermal Monocular Camera
The Pixfra PFI-M325 Thermal Monocular Camera is a compact and portable thermal imaging device designed for reliable observation in a wide range of outdoor conditions. It features a 384 × 288 thermal detector, a 25 mm F0.9 lens, and a thermal sensitivity of ≤15 mK for detailed thermal imaging. With a detection distance of up to 1,300 m, a high-resolution OLED display, and Pixfra's PIPS 3.0 Pro technology, the PFI-M325 provides practical functionality in a durable magnesium alloy housing.
Key Features:
- 384 × 288 Thermal Detector: An uncooled vanadium oxide focal plane detector delivers thermal images with 12 μm pixel pitch.
- High Thermal Sensitivity: NETD of ≤15 mK at F1.0 helps distinguish subtle temperature differences.
- 25 mm F0.9 Lens: Provides a balance between detection capability and a useful field of view.
- Detection Distance up to 1,300 m: Supports thermal target detection at extended distances.
- PIPS 3.0 Pro Technology: Pixfra image-processing technology designed to enhance thermal imaging performance.
- High-Resolution OLED Display: The 0.49-inch screen with 1920 × 1080 resolution provides a detailed viewing experience.
- Multiple Colour Palettes: Choose from White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia.
- Digital Zoom: Adjustable digital magnification from 1× to 8×.
- Hot Spot Tracking: Helps identify and follow the hottest area in the observed scene.
- Picture-in-Picture (PIP): Provides an additional magnified view while retaining the main image.
- Photo and Video Recording: Capture images and videos directly on the device.
- Built-in 64 GB Storage: Internal storage provides space for recorded media.
- Wi-Fi Hotspot: Supports wireless connectivity.
- Replaceable 18650 Battery: The rechargeable battery design allows quick battery changes.
- Long Operating Time: Provides at least 5.5 hours of operation at 25°C with Wi-Fi switched off, according to the manufacturer.
- Durable Magnesium Alloy Housing: A robust, compact construction for outdoor use.
- IP67 Protection: Designed to provide protection against dust and water ingress under specified test conditions.
- Three-in-One Control: The manufacturer highlights three functions operated through one wheel for convenient handling.
Technical Specifications
| Specification |
Details |
| Brand |
Pixfra |
| Model |
PFI-M325 |
| Device Type |
Thermal Monocular Camera |
| Detector Type |
Uncooled vanadium oxide focal plane detector |
| Thermal Resolution |
384 × 288 pixels |
| Pixel Pitch |
12 μm |
| Frame Rate |
50 Hz |
| Spectral Range |
8–14 μm |
| Thermal Sensitivity (NETD) |
≤15 mK at F1.0 |
| Focal Length |
25 mm |
| Lens Aperture |
F0.9 |
| Field of View |
Horizontal: 11°; Vertical: 8.2° |
| Field of View at 100 m |
Horizontal: 19.3 m; Vertical: 14.3 m |
| Focus Control |
Manual |
| Minimum Focus Distance |
1 m |
| Detection Distance |
Up to 1,300 m |
| Visual Equivalent Magnification |
1.8× |
| Digital Zoom |
1×–8× |
| Display Type |
OLED |
| Display Size |
0.49 inch |
| Display Resolution |
1920 × 1080 pixels |
| Colour Palettes |
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Diopter Adjustment |
−5 D to +3 D |
| Eye Relief |
15 mm |
| Video Recording |
Yes |
| Snapshot Capture |
Yes |
| Wi-Fi Hotspot |
Yes |
| Hot Spot Tracking |
Yes |
| FFC Calibration |
Automatic, semi-automatic, manual |
| Standby Mode |
Yes |
| Defective Pixel Correction (DPC) |
Yes |
| Microphone |
Yes |
| Compass |
Yes |
| Picture-in-Picture (PIP) |
Yes |
| Local Album |
Yes |
| Internal Storage |
64 GB |
| Image Processing Technology |
PIPS 3.0 Pro |
| Battery Type |
Rechargeable 18650 lithium battery |
| Operating Time |
≥5.5 hours at 25°C with Wi-Fi off |
| Power Supply |
5 V DC |
| USB Interface |
USB Type-C |
| Operating Temperature |
−30°C to +55°C |
| Operating Humidity |
≤95% |
| Protection Rating |
IP67 |
| Product Dimensions |
160.0 × 52.6 × 50.5 mm |
| Packaging Dimensions |
190.0 × 137.0 × 86.0 mm |
| Net Weight |
≤0.30 kg |
| Gross Weight |
≤0.85 kg |
Advanced Thermal Imaging with PIPS 3.0 Pro
The Pixfra PFI-M325 uses a 384 × 288 uncooled thermal detector with 12 μm pixel pitch and a sensitivity of ≤15 mK at F1.0. Combined with the 25 mm F0.9 lens and PIPS 3.0 Pro technology, the device is designed to deliver detailed thermal images across different observation conditions.
OLED Display and Viewing Options
The 0.49-inch OLED display offers a resolution of 1920 × 1080 pixels. Six colour palettes—White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia—allow users to select a viewing mode suited to their preferences and environment. Digital zoom from 1× to 8× provides additional image magnification when required.
Recording and Smart Functions
The PFI-M325 includes photo capture, video recording, a microphone, Wi-Fi hotspot functionality, hot spot tracking, a compass, and picture-in-picture viewing. Its built-in 64 GB storage and local album allow recorded content to be saved directly on the device. FFC calibration is available in automatic, semi-automatic, and manual modes.
Portable Design and Replaceable Battery
The compact magnesium alloy body measures 160.0 × 52.6 × 50.5 mm and weighs no more than 0.30 kg. The quick-change rechargeable 18650 lithium battery provides at least 5.5 hours of operation at 25°C with Wi-Fi disabled. The device uses a USB Type-C interface and a 5 V DC power supply.
Designed for Outdoor Conditions
With an operating temperature range of −30°C to +55°C, operating humidity of up to 95%, and an IP67 protection rating, the Pixfra PFI-M325 is designed for use in demanding outdoor environments. Its durable magnesium alloy housing combines portability with a robust construction.
Important Notes:
Important Note: The stated battery operating time of at least 5.5 hours is measured at 25°C with Wi-Fi switched off. Actual operating time may vary depending on environmental conditions and usage.
Important Note: The manufacturer states that product images, specifications, and other information are for reference only and may differ from the actual product. Specifications are subject to change without notice.
