Specifications
- Detector type Vanadium oxide uncooled focal plane detector
- Effective pixels 384 (H) × 288 (V)
- Pixel pitch 12 μm
- Spectral range 8 μm～14 μm
- Sensitivity (NETD) ≤30 mK@f/ 1.0
- Frame rate 50 Hz
- Focal length 25 mm
- Field of view H: 11.0°; V: 8.2°
- Thermal focus control Manual
- Close focusing distance 2 m (6.56 ft)
- Aperture F1.0
- Sensing range 1300 m (4265.09 ft)
- Digital zoom 1 ×; 2 ×; 4 ×; 8 ×
- Magnification 2.1X
- 6 colour palettes (white hot/ black hot/ yellowish red/ warning signal/ amber/ amber brown)
- Display screen size 0,41 inch, OLED
- Built-in EMMC (32 GB);
- Uniformity correction Automatic, manual
- PIP YES
- Network +D57 YES
- Audio recording YES
- Recording with rewind activation YES
- Max. Rebound 1000g/ 1ms
- Cold/hot spot tracking Y
- Wi-Fi Yes
- Power supply 5 VDC/ 1 A, USB Type-C
- Battery type 1 rechargeable lithium battery
- Battery capacity 3200 mAh
- Surge protection Yes
- Battery life ≥7.5 h
- Operating temperature -30 °C to +55 °C (-22 °F to +131 °F)
- Storage temperature -30 °C to +65 °C (-22 °F to +149 °F)
- Protection IP67
- Product dimensions 180,8 mm × 64,1 mm × 87,7 mm (7,12" × 2,52" × 3,45") (L × W × H)
- Package dimensions 267 mm × 227 mm × 116 mm (10,51" × 8,94" × 4,57") (L × W × H)
- Net weight ≤460 g (without battery)
Description:
Chiron series of thermal sights.

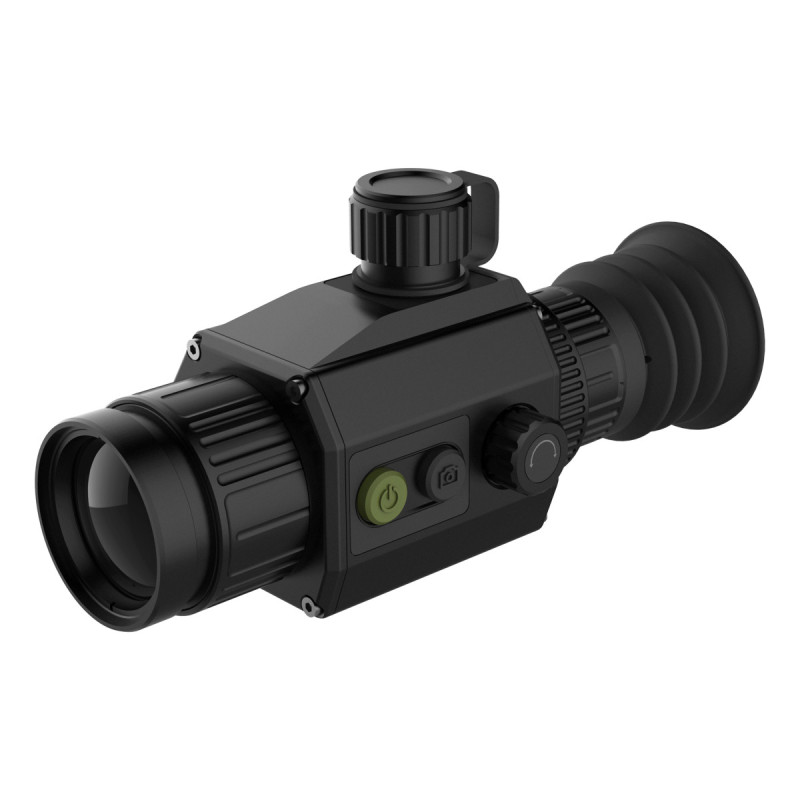

The PIXFRA PFI-C425 25 mm thermal imager is a high performance thermal imaging device for a wide range of applications. It is equipped with a 25 mm lens and a thermal sensor with 384 x 288 pixel resolution for clear thermal images. With a thermal sensitivity of less than 30 mK, this thermal imager can detect even the smallest temperature differences, making it ideal for use in surveillance, search and rescue and hunting. With a sensing range of up to 1350 metres, it captures thermal images of distant objects very clearly.
The PIXFRA PFI-C425 25 mm thermal imaging sight has several advanced features including digital zoom, picture-in-picture and multiple colour palettes. It is also IP67 rated, meaning it is waterproof and dustproof, making it suitable for use in harsh environments. This thermal camera is designed to be easy to use and can be operated with a simple joystick. It also has a built-in rechargeable battery that provides up to 6 hours of continuous operation, allowing users to use it for long periods of time without worrying about the battery running out. Overall, the PIXFRA PFI-C425 25 mm thermal imager is a reliable and versatile thermal device that delivers high quality thermal images for a variety of applications.
