Specification
Infrared detector
- VOx type detector, 8 to 14 μm
- Detector resolution 384 × 288, 12 μm
- NETD ≤40mk
- Frame rate 50 Hz
Lens
- Focal length 35 mm; F1.0
- Field of view 7.5° × 5.6°
- Optical zoom 2.6x
- Digital zoom 1x, 2x and 4x
- Manual focus
Power
- Battery type Single, replaceable 18650 battery
- Operating time ≥ 10 hours
- Interface
- USB Type-C (USB 2.0 standard), supports analogue video and power supply
- Video interface USB Type-C
- Mechanical interface UNC ¼"-20 (tripod mount), mechanical expansion interface
Display
- Display type 0.23'' OLED
- Resolution 640 × 400
- Eyepiece Monocular, exit pupil distance ≥ 12 mm, dioptric adjustment: -4 to ＋2
- Ocular zoom 18x
- Video output Analogue video
Functions
- Hotspot tracking possible
- Inaccurate range Available with APP
- PIP Top left, top middle, top right, closed
- Scene modes Enhanced, Highlight and Natural
- Colour palettes Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
- Compensation Modes Auto, Shutter and Scene Compensation
- WIFI Real-time video transmission via WIFI for remote control in the 2.4G band and 15 metres
- Laser rangefinder (up to 600 m)
Environmental
- Storage temperature -30 °C to 60 °C
- Humidity 10 % to 95 % non-condensing
- Impact 30 G with 11 ms half-sine pulse (according to IEC60068-2-27)
- Vibration 10 Hz~150 Hz~10 Hz 0,15 mm (according to IEC60068-2-6)
- Drop 1 m
- Hermetic enclosure IP66
- Certifications IP66, FCC, CE, RoHS, EAC, WEEE, UN38.3, IEC 60825-1 Class 2
- Detection range
- Detection range 1400 m
Physical
- Weight ≤393 g
- Size (length × width × height) 150 × 77 × 74 mm
- Standard A unit, lens cap and strap, battery charger, one 18650 battery, USB Type-C cable, wrist strap, carrying bag, eye mask, quick start guide, warranty card
Description:

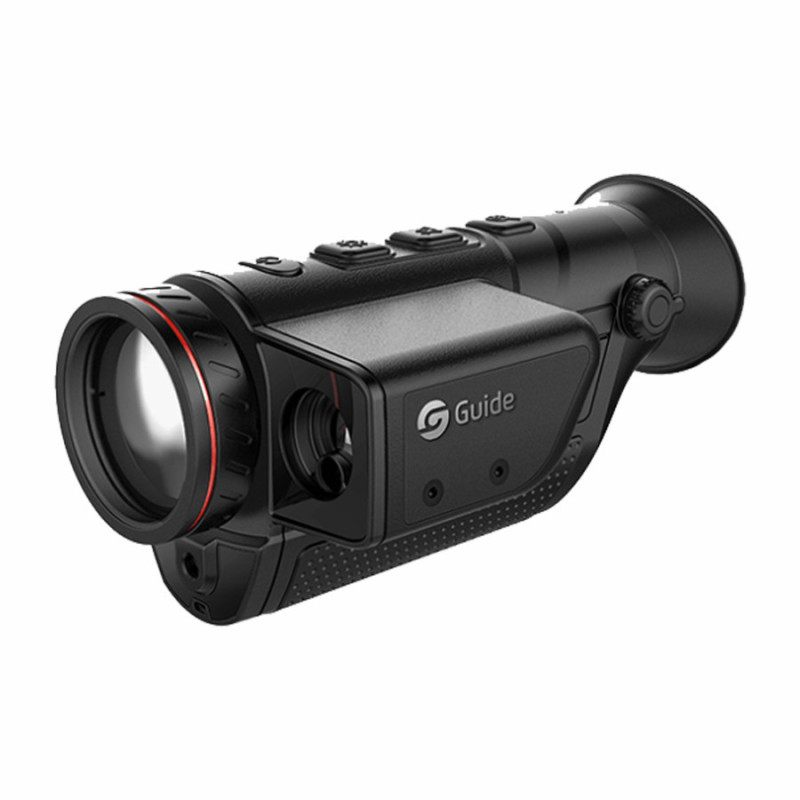

The TD Gen2 LRF series is the industry's first entry-level full-function handheld thermal imaging monocular. It inherits the features of the previous generation, such as being lightweight, portable, easy to use and rugged, but integrates a high-precision laser rangefinder module that enables accurate target acquisition within a 600 metre radius. It is equipped with an OLED display for clear imaging and a comfortable viewing experience, making it ideal for night vision in the outdoors.
OLED display with high brightness
A 12 μm high-sensitivity infrared detector and a 0.23-inch OLED display with 384 x 288 resolution to better capture image edges and details, delivering a high-contrast and detailed thermal image for a comfortable viewing experience.
Advanced image processing algorithms
The TD Gen2 LRF series takes a new approach to image optimisation depending on the observation targets and conditions, and provides high quality imaging of both target objects and backgrounds.
10 hours of battery life
More than 10 hours of active use, 3 hours more than the previous generation. Standard 18650 battery, easy to purchase.
New user interface design
New user interface design to simplify operation; icon operation without language restrictions.
Real-time sharing via WIFI
Connect the app to your phone via WIFI and share the beautiful moment in real time.
OTA update
Supports device firmware updates by connecting to TargetIR APP for high efficiency.
