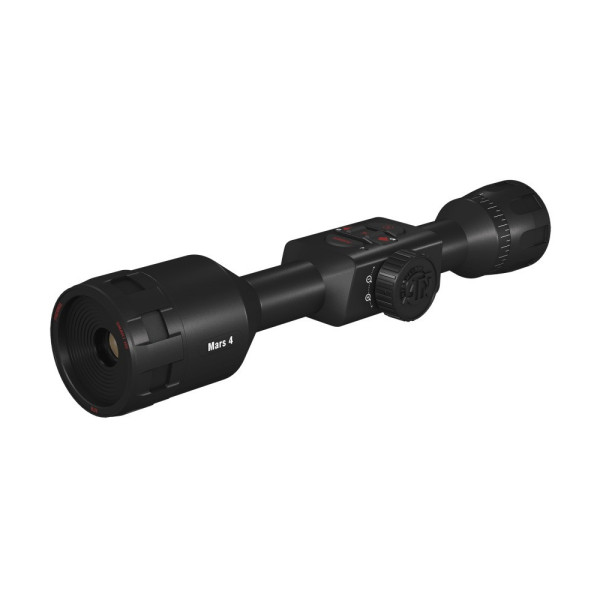

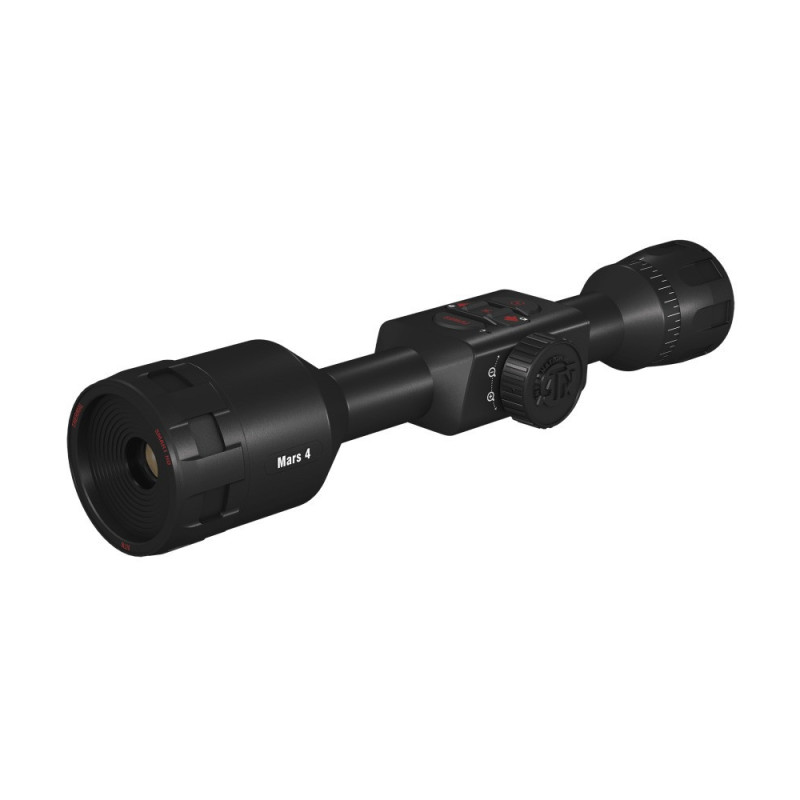

TECHNICAL SPECIFICATIONS
| SKU |
MS4K3850 |
| Sensor |
Gen 4 384x288, 60Hz |
| Magnification |
4.5-18x |
| Field of view, degrees |
6x4.7 |
| Core |
ATN Obsidian IV Dual Core T |
| Micro Display |
1280x720 HD Display |
| Eye relief |
90 mm |
| Video Record Resolution |
1280x960 @ 60 fps |
| Ballistic Calculator |
Yes |
| WiFi (Streaming, Gallery, & Controls) |
iOS & Android |
| Bluetooth |
Yes |
| 3D Gyroscope |
Yes |
| 3D Accelerometer |
Yes |
| E-Barometer |
Yes |
| Smart Range Finder |
Yes |
| RAV (Recoil Activated Video) |
Yes |
| Electronic Compass |
Yes |
| Smooth Zoom |
Yes |
| Reticles |
Multiple Patterns & Color Options |
| Microphone |
Yes |
| Micro SD card |
4 to 64 Gb |
| Micro USB, type C |
Yes |
| Mount |
30 mm Standard Rings (included) |
| Battery life (Li-ion) |
18 + hrs |
| Waterproof rating / IP rating |
Weather resistant |
| Smart Mil Dot Value Range |
2.0-10 |
| Human Detection Range |
1800 |
| Human Recognition Range |
720 |
| Human Identification Range |
430 |
| Operating Temperature |
-20°F to +120°F / -28°C to 48°C |
| Dimensions |
13.8"x3"x3" / 351x76x76 mm |
| Weight |
2.2 lb / 1.0 kg |
| Warranty |
3 years |
THERMAL DETECTION RANGE CHART DETECTION 750 RECOGNITION 335 IDENTIFICATION 205
Detection: 1.5 pixels / 0.75m = 2 pixels per meter
Recognition: 6 pixels / 0.75m = 8 pixels per meter
Identification: 12 pixels / 0.75m = 16 pixels per meter
ULTRA SENSITIVE NEXT GEN SENSOR
VIDEO RECORD
Record and Share your Hunt with a press of a button. Video files stored on an internal micro SD card.
EASY TO MOUNT — EASY TO USE
New controls
Spin to Zoom Wheel - what could be more Natural. While the new Tactile Buttons let you feel every click for optimal control.
Included:
1. Standard ring 2. Ring with Picatinny rail 3. L-shape ring
Classical Ergonomics
21st Century Technology designed to make your Shooting Experience easy and familiar
ONE SHOT ZERO
Sighting in your scope has never been easier with One Shot Zero. Take a shot adjust your reticle and you are good to go.
ATN RADAR THE SOCIAL WAY TO HUNT
Game can be tagged with an ATN capable laser device and the target's location will automatically be displayed on a map overlay in your phone and your ATN connected device. Individuals using ATN Smart devices will see a mini radar in their field of view providing the relative direction and range to the tagged target.
Turn Hunting into a real Team Sport. Quickly know where your group is at all times. Mark your prey and go for the trophy.
BALLISTIC CALCULATOR
Hunt responsibly by making sure your shot hits the target Each and Every time. Range, Wind, Multiple-Weapon Profiles, Angle to target, Temperature, Humidity, more...
PROFILES
Rifle Type 223 Remington
Drag Function G1
Ballistic Coefficient 0.371
Bullet Weight 55 gr
Initial Velocity 2850 fps / 868 m/s
Zero Range 100 yd / 91 m
Sight Height 2.5 in / 6.35 cm
Shooting Angle -2°
ENVIRONMENT
Relative Humidity 85%
Wind Speed 12 mph / 5.4 m/s
Wind Direction -45°
Temperature 59°F / 15°C
Barometric Pressure 29.92 hg / 760 mmHg
Altitude 1800 ft / 549 m
SMART MIL DOT RETICLE
Now depending on your load, you can program the variance between hash marks in Mils into this Smart Mil Dot Reticle.
This reticle is Dynamic and adjusts with magnification throughout the entire zoom range.
DUAL STREAM VIDEO
You asked and we listened. Obsidian 4 not only Streams Video at HD resolution but can simultaneously Record to the SD card inside.
Recoil Activated VIDEO
Never miss that Excellent Hunting Moment. Turn on RAV and let the X-Sight Record directly to your SD card. Recoil Activated Video (RAV) takes care of all your worries. Just relax and focus on your game and let the Obsidian Core do the heavy lifting.
ULTRA LOW POWER CONSUMPTION
Our new Dual Core Processor not only runs fast but runs cool. 1st ever digital scope with over 16hrs of continuous battery power.
RECOIL RESISTANT
Designed to withstand the pressures of high caliber weapons, the Mars LT is made from Hardened Aluminum Alloy.
AUXILIARY BALLISTIC LASER
Turns your Mars 4 into a Full LRF scope
*OPTIONAL
The ABL Laser RangeFinder turns your Mars 4 into a Long Range Hunters Dream. Simple installation and One button operation will make you into the deadliest predator around.
