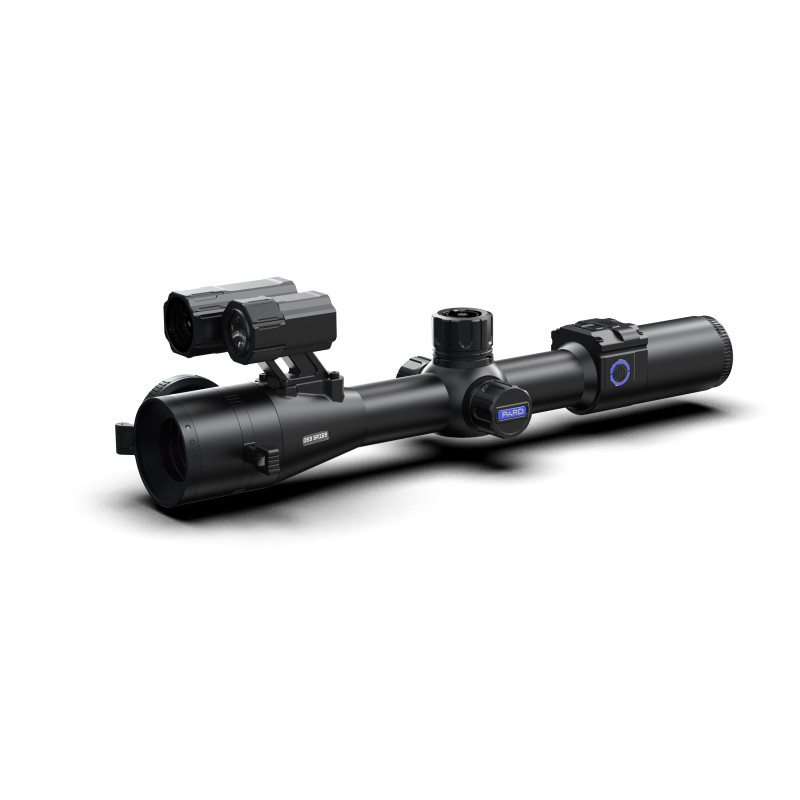

The Pard DS35 series is a newly developed digital night vision sight. The DS35 range includes a choice of focal lengths, IR illuminator wavelengths and the option of an integrated laser rangefinder. Starting at 5.6x magnification with 2x digital zoom (up to 11.2x). Each DS35 has a 2560x1440 high resolution CMOS sensor for day/night viewing from the Pard VLEA imaging software.
Key features:
"PARD 2K" resolution sensor - highly sensitive in low light - down to 0.001 lux
"PARD VLEA advanced image enhancement
1000 mtr integrated laser rangefinder (LRF model only)
Video recording activated
Ballistic calculator
Other features;
2560x1440 CMOS optical sensor
850 nm IR illuminator (350 mtr IR range) - 5 watts
Gyroscope, loop recording, audio recording, exposure compensation
Rifle mountable with standard 30 mm rings
1x 18650 removable battery (+8h runtime)
Micro SD storage for media recording, WiFi connection
Model: DS35-70R
Optical sensor: 2560 x 1440
Lens: 70 mm (F2.4)
Magnification, x: 5.6x - 11.2x
Field of view (HxW), degrees: 3.4° x 3.4°
Detection range, m: 350 (IR range)
Sensor:
Type: CMOS
Resolution, pixels: 2560 x 1440
Frame rate: 30 fps
Optics:
Lens: 70 mm (F2.4)
Magnification, x: 5.6 x 11.2x (2x digital)
Field of view (HxW), degrees: 3.4° x 3.4°
IR lighting:
IR wavelength: 940 nm
IR power, w: 5
IR sensing distance: 350 m
Display:
Resolution, pixels: 800 x 800 IPS LCD
Colour Palette: Colour / Mono BW / Mono Green / Mono Yellow
Range Performance:
Detection range (person), m: 200m
Laser Rangefinder:
Min. Measurement range, m: 3.5
Max. Measurement range, m: 1000
Measurement accuracy, m: 1
Grid:
Image in picture: Yes
Number of pre-loaded nets: 6
Number of available zero profiles: white / yellow / green
Wireless internet
Recording:
Photos and videos (Micro SD card - up to 128 Gb)
Environmental features:
IP67
Power supply:
Output voltage, V: 3.7
Battery type: 18650 Li-ion
Operating time on battery pack (at t=22°C), h*: >8
Connections and compatibility:
Max. (Connection/connection: Connection/connection: -50V, Connection/connection: -50V, Connection/connection: -50V, Connection/connection: -50V
Mounting brackets on the firearm: 30 mm rings
Weight and size:
Dimensions, (LxWxH)mm: 350 x 88 x 95
Weight, kg: 0,68
Warranty: 2 years
