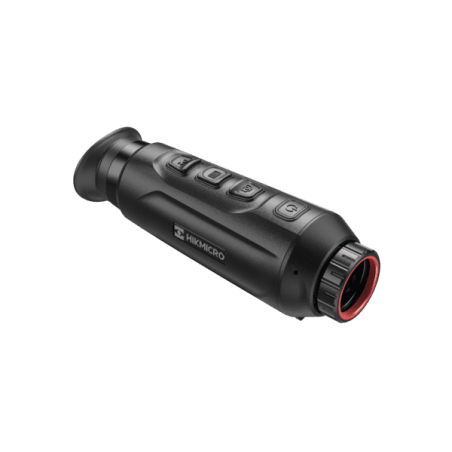

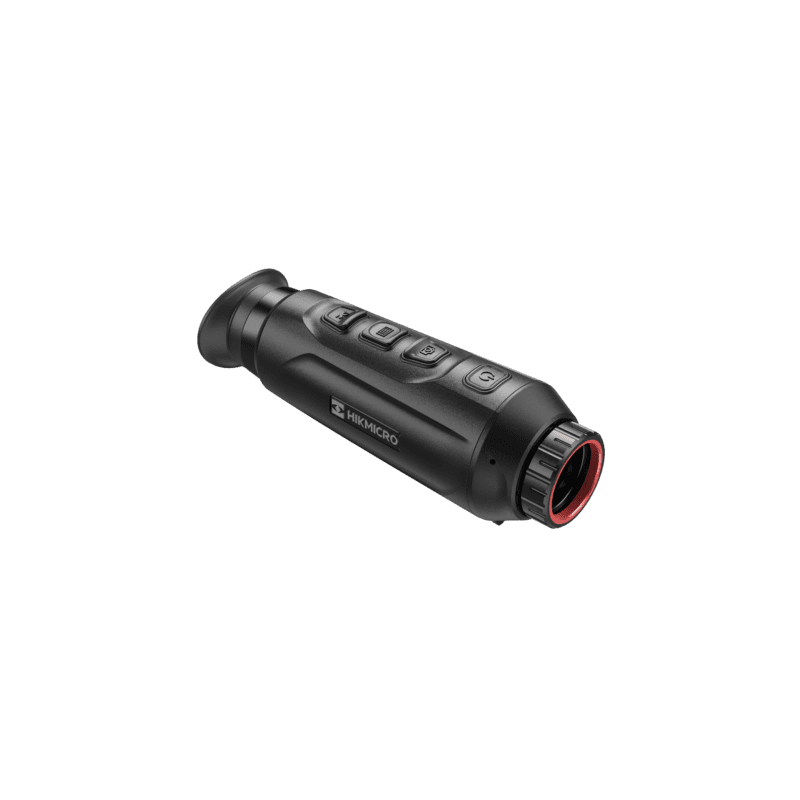

HIKMICRO LYNX 2.0 LH19 Thermal Monocular
Superior Sensitivity in a Pocket-Sized Design
Discover the next generation of compact thermal imaging with the HIKMICRO LYNX 2.0 LH19. This pocket-sized thermal monocular is engineered for a superior observation experience, featuring a manual focus ring for precise image control and an industry-leading NETD < 20mK sensor. This extreme sensitivity provides detailed, informative images in all weather conditions. With a versatile 1.8x base magnification, 900m detection range, and a 19mm/F1.0 lens, the LH19 2.0 is the perfect tool for quickly detecting your target, whether in an open field or dense forest.
Key Features:
- Ultra-High Sensitivity (NETD < 20mK): The advanced sensor delivers exceptionally detailed and informative images, distinguishing minimal temperature differences even in harsh weather.
- Crisp 1024x768 OLED Display: Features a large, high-resolution 0.39-inch OLED screen for an immersive viewing experience with lower power consumption and richer colors.
- Manual Focus Ring: A new manual focus ring (F1.0) provides fine control over the image, allowing you to achieve a perfectly sharp view at various distances.
- Replaceable Battery & Long Runtime: The new power supply design includes a replaceable and rechargeable Li-ion battery that supports up to 6.5 hours of continuous operation.
- Fast 3-Second Startup: Powers on in just 3 seconds, ensuring the monocular is always ready when you are.
- Compact & Lightweight: A true pocket-sized partner, the LYNX 2.0 weighs only 282g (without battery), making it effortless to carry.
- Onboard Recording & Wi-Fi: Captures video and snapshots on 16GB of built-in memory. The integrated hotspot connects to the HIKMICRO Sight app for streaming and sharing.
- New User Interface: Features a new, user-friendly hierarchical menu for quick access to frequently used functions and personalized settings like contrast and sharpness.
- Auto Screen Off: A smart algorithm automatically turns the screen off when the device is tilted 75° sideways or 70° up/down to save power.
Thermal & Optical Specifications:
| Characteristic |
Value |
| Sensor Type |
VOx Uncooled Focal Plane Arrays |
| Resolution |
384x288 pixels |
| Pixel Pitch |
12 μm |
| NETD |
Less than 20 mK (@25°C) |
| Frame Rate |
50 Hz |
| Objective Lens |
19 mm, F1.0 |
| Magnification |
1.8x - 14.4x (8x Digital Zoom) |
| Field of View (@ 100m) |
13.7° × 10.3° / 24.0 m × 18.0 m |
| Detection Range |
900 m |
| Focus |
Manual Focus Ring |
Display & System Specifications:
| Characteristic |
Value |
| Display |
0.39 inch, OLED, 1024x768 |
| Color Palettes |
Black Hot, White Hot, Red Hot, Fusion |
| Image Correction |
Auto, Manual, External |
| Memory |
Built-in 16 GB EMMC |
| Recording |
Yes (Video & Snapshot) |
| Wi-Fi Hotspot |
Yes (HIKMICRO Sight App) |
Physical & Power Specifications:
| Characteristic |
Value |
| Battery Type |
Replaceable and Rechargeable Li-ion |
| Battery Life |
Up to 6.5 hours (hotspot off) |
| Power Supply |
5V DC, 2A (Supports External Power) |
| IP Rating |
IP67 |
| Weight |
282 g (without battery) |
| Dimensions |
172.5 mm × 56.0 mm × 60.8 mm |
| Operating Temperature |
-30 °C to 55 °C |
