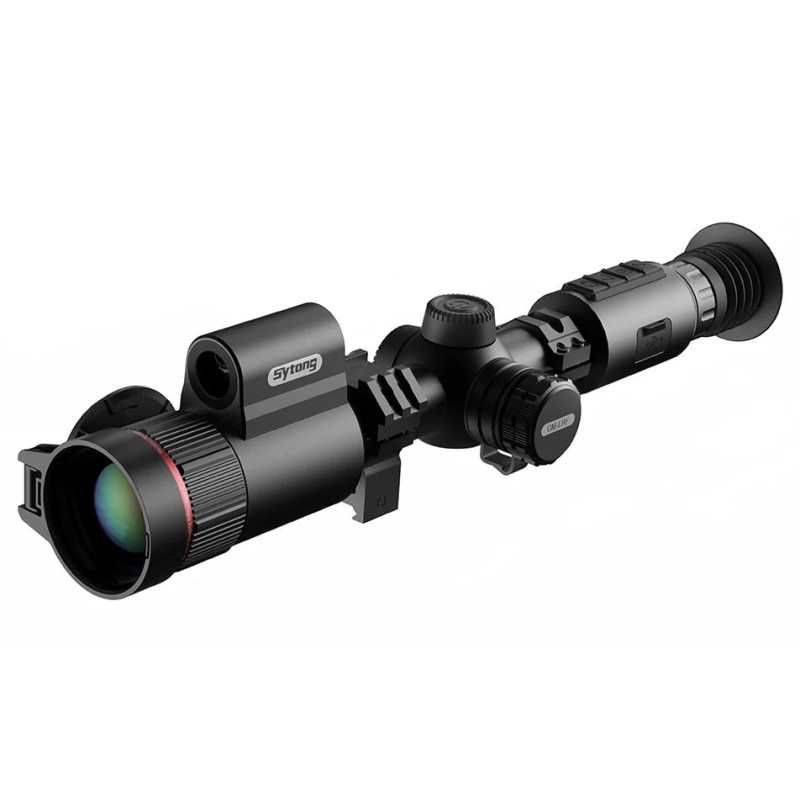

Sytong GM06-50LRF Thermal Sight (640x512, 50mm, 1x-8x, Wi-Fi)
The Sytong GM06-50LRF is an advanced thermal rifle scope featuring a high-resolution sensor, integrated laser rangefinder (LRF), and ballistic calculator, all built on a standard 30mm tube platform for easy mounting. It supports both 18650 and 26650 batteries, providing exceptional operational time of up to 11 hours. Equipped with Sytong's latest ultra-sensitive 640x512, 12µm sensor with an impressive NETD of ≤18mK, the GM06-50LRF delivers clear, high-definition thermal images even in adverse weather conditions. The integrated ballistic computer allows you to input your specific ballistic data; when combined with the 800m laser rangefinder, the scope automatically calculates and displays the correct holdover point on the reticle for precise long-range shots.
Key Features:
- High-Resolution Thermal Sensor: Features an ultra-sensitive 640x512, 12µm VOx sensor with NETD ≤18mK for exceptional image clarity and detail, even in challenging conditions.
- Integrated LRF & Ballistics: Includes an 800m laser rangefinder and an onboard ballistic computer that calculates and displays the correct holdover aiming point.
- Long Battery Life: Supports both 18650 and 26650 batteries, offering 9-11 hours of continuous operation.
- Standard 30mm Tube: Designed for easy mounting on various rifle platforms using standard 30mm scope rings.
- High-Quality Display: A crisp 1024x768 OLED display provides a clear view of the thermal image and reticle information.
- Multiple Image Palettes: Offers WhiteHot, SkyMode, BlackHot, RedHot, and Fusion palettes to suit user preference and environmental conditions.
- Onboard Recording & Wi-Fi: Captures photos and videos (1024x768 resolution) onto a TF card (up to 32GB) and supports Wi-Fi streaming via the Sytong app.
- Durable & Weatherproof: IP67 rated for water and dust resistance, shockproof to 1200g, and built for reliable performance.
Thermal & Optical Specifications:
| Characteristic |
Value |
| Sensor Type |
Uncooled VOx |
| Resolution |
640x512 pixels |
| Pixel Size |
12µm |
| NETD |
≤18mK |
| Frame Rate |
50Hz |
| Objective Lens |
50mm |
| Field of View |
8.8° x 6.6° |
| Base Magnification |
2.5x |
| Digital Zoom |
1x / 2x / 4x / 8x |
| Display |
0.39 inch OLED (1024x768) |
| Eye Relief |
50mm |
| Diopter Adjustment |
+5 / -5 D |
| Detection Distance |
2500m (1.7m x 0.5m target) |
LRF & Ballistics Specifications:
| Characteristic |
Value |
| Laser Rangefinder Range |
800m |
| LRF Accuracy |
±1m |
| Laser Wavelength |
905nm |
| Ballistic Calculator |
Yes, Integrated |
Physical & Operational Specifications:
| Characteristic |
Value |
| Video/Photo Recording |
Yes (1024x768 resolution, .mp4 / .jpg) |
| Memory |
TF Card, Max 32GB (FAT32) |
| Wi-Fi |
Yes (2.4GHz, 802.11 b/g) |
| 3D Gyroscope |
Yes |
| Battery Type |
1x 18650 or 1x 26650 |
| Battery Life |
9 - 11 hours |
| External Power |
Yes (5V USB) |
| Weight (without battery/mount) |
937g |
| Dimensions |
408 x 96 x 85 mm |
| IP Rating |
IP67 |
| Shock Resistance |
1200g / 6ms |
| Operating Temperature |
-20°C to +50°C |
