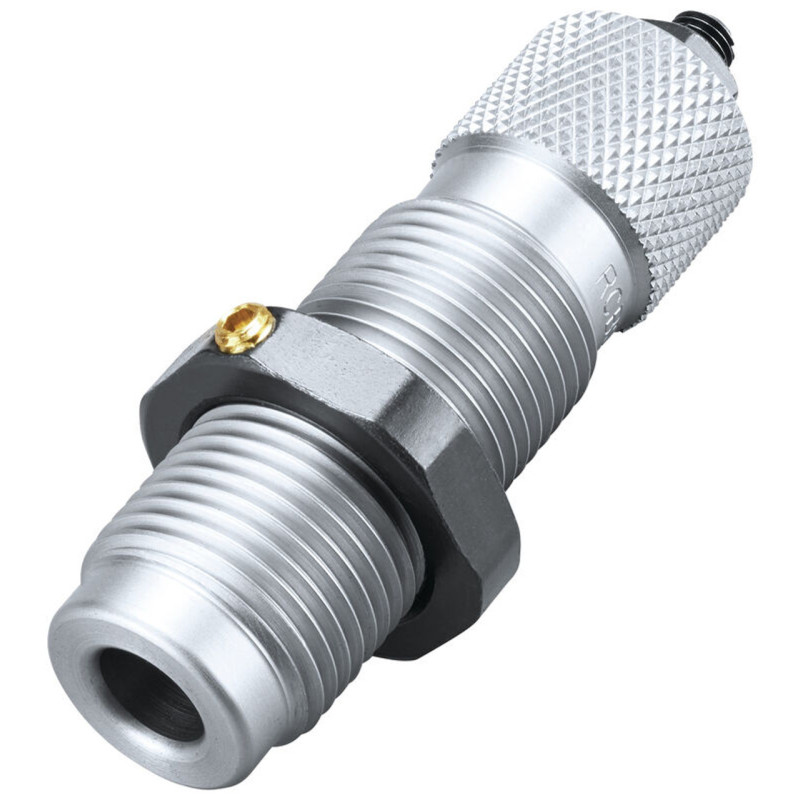

RCBS Small Base Sizer Die - .30-06 Springfield (Group A)
Important Note: This is a single Small Base Sizer Die only. It is not recommended for ammunition used in bolt-action rifles. Case lubrication is required.
The RCBS Small Base Sizer Die for .30-06 Springfield is specifically designed for bottleneck cases used in firearms with tight chambers, such as semi-automatic, pump, or lever-action rifles. This die resizes cases to dimensions slightly below SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) minimums, reducing both the shoulder and body by a few thousandths of an inch. This process helps to ensure exceptionally reliable feeding and chambering, particularly important for semi-automatic platforms like the AR-10 pattern rifles, where consistent operation is paramount. It also simultaneously de-primes the spent case.
Key Features & Function:
- Sub-SAAMI Sizing: Sizes cases slightly smaller than SAAMI minimums, which is crucial for reliable chambering in firearms with tight or minimum-spec chambers.
- Enhanced Reliability: Significantly improves feeding and chambering reliability in semi-automatic, pump, and lever-action rifles.
- De-Priming Function: The die includes a decapping unit that removes the spent primer during the sizing operation.
- Precise Headspace Control: Reduces the case shoulder and body by a few thousandths to ensure proper fit in challenging chambers.
- Durable Construction: Made from high-quality, hardened die steel for a lifetime of precision reloading.
Specifications:
| Characteristic |
Value |
| Brand |
RCBS |
| Product Type |
Small Base Sizer Die (with Decapping Unit) |
| Caliber |
.30-06 Springfield |
| Material |
Hardened Steel |
| Threads |
Standard 7/8"-14 |
| Recommended Use |
Semi-automatic, pump, or lever-action firearms with tight chambers |
| Note |
Not recommended for bolt-action rifles |
For a visual guide on resizing, you can watch this video: https://www.youtube.com/watch?v=h4wFMX9Cmzk
