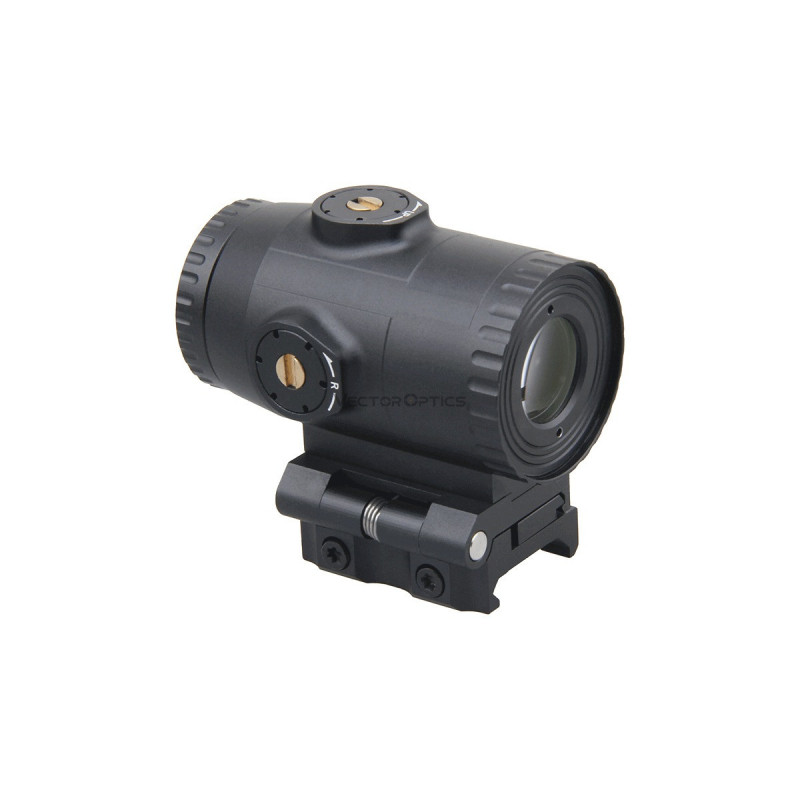

Vector Optics Paragon 3×18 Micro Magnifier – Compact Flip-to-Side Magnification for Red Dot Sights
The Vector Optics Paragon 3×18 Micro Magnifier (SCMF-33) is a remarkably compact and robust optic, designed to elevate your red dot sight’s performance by providing rapid mid-range magnification. Featuring a built-in flip-to-side QD Picatinny mount, adjustable windage and elevation, and crystal-clear optics, it is an essential tool for CQB and dynamic shooting setups.
Premium Optical Design & Clarity
- Magnification: 3× fixed zoom for clean mid-range target acquisition.
- Objective Lens: 18 mm diameter with fully multi-coated optics for maximum light transmission and sharpness :contentReference[oaicite:1]{index=1}.
- Eye Relief: Generous 66–67 mm (approx. 2.6 in), ensuring a comfortable and safe shooting position :contentReference[oaicite:2]{index=2}.
- Field of View: Wide 7.4° angular FOV, allowing broader situational awareness :contentReference[oaicite:3]{index=3}.
- Focus Adjustment: Diopter-adjustable eyepiece (–2 to +2), enabling sharp focus customization :contentReference[oaicite:4]{index=4}.
Built for Speed and Reliability
- Durable Construction: CNC-machined 6061-T6 aluminum alloy body ensures strength and longevity :contentReference[oaicite:5]{index=5}.
- Weather Sealing: Nitrogen-purged, shockproof, fogproof, and IP67 rated for waterproofing — fully operational after 30 minutes submerged at 1 meter depth :contentReference[oaicite:6]{index=6}.
- Compact Profile: Only 70 mm (2.75 in) long, with a centerline height of 36 mm (1.4 in), making it ideal for tight CQB setups :contentReference[oaicite:7]{index=7}.
- Flip-to-Side QD Mount: Integrated quick-detach Picatinny mount allows seamless switching between magnified and unmagnified views; mount height places optical axis 36 mm from rail center :contentReference[oaicite:8]{index=8}.
- Riser Section Included: Enhances sight co-witness or provides absolute co-witness alignment :contentReference[oaicite:9]{index=9}.
- Weight: Approximately 215 g (7.6 oz), balancing sturdiness with portability :contentReference[oaicite:10]{index=10}.
Precision Adjustability
- Windage & Elevation Adjustments: Offers precise zeroing capabilities for accurate alignment with your primary sight :contentReference[oaicite:11]{index=11}.
- Fast-Focus Eyepiece: Enables quick diopter correction for instant clarity during transitions :contentReference[oaicite:12]{index=12}.
Included Accessories
- Riser section (for adjusted sight height)
- Hex keys and plastic adjustment wrench
- Cleaning cloth
- User manual
Technical Specifications
| Specification |
Details |
| Magnification |
3× fixed |
| Objective Lens |
18 mm |
| Exit Pupil |
6.0 mm (0.24 in) |
| Eye Relief |
66–67 mm (2.6 in) |
| Field of View |
7.4° |
| Optics Coating |
Fully multi-coated |
| Adjustment |
Windage & elevation adjustable |
| Diopter |
–2 to +2 (fast-focus) |
| Mount |
Flip-to-side Picatinny QD (36 mm height) |
| Material |
6061-T6 aluminum |
| Waterproof Rating |
IP67 (1 m for 30 min) |
| Dimensions |
70 mm × height 36 mm |
| Weight |
215 g (7.6 oz) |
Summary
The Vector Optics Paragon 3×18 Micro Magnifier is a compact, high-performance solution for shooters looking to extend their red dot sight’s effective range without sacrificing agility. Its clear optics, durable design, adjustable alignment, and rapid deployment flip mount make it an exceptional addition for tactical, hunting, or competitive setups.
