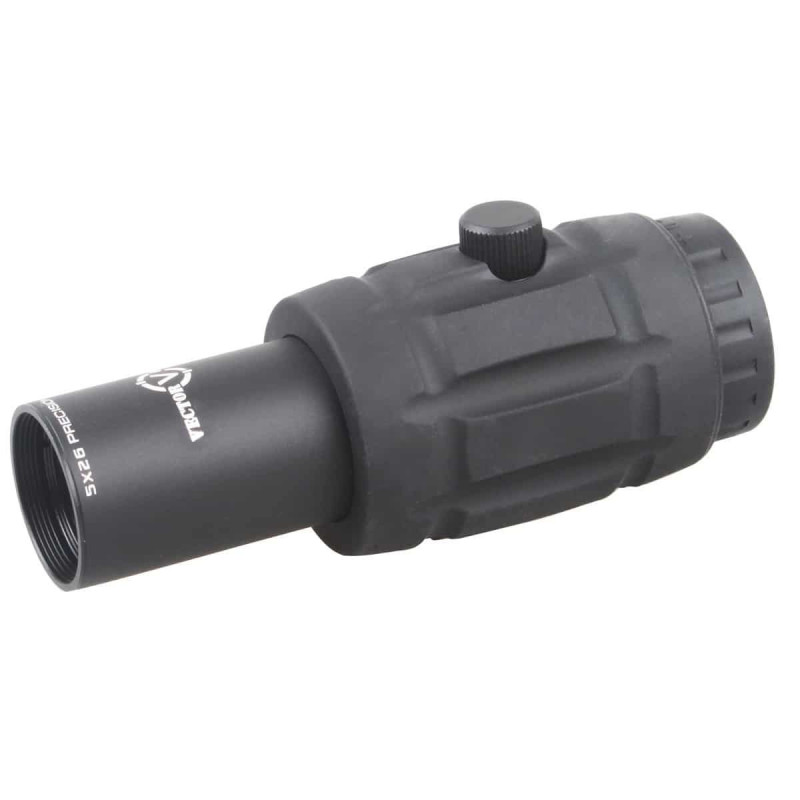

Vector Optics Maverick 5×26 Magnifier (Old Model SCOT-08) — Flip-to-Side 5× reach, absolute-height mount, dot-centering without disturbing zero
The Vector Optics Maverick 5×26 (SCOT-08) turns any quality 1× red dot into a flexible sighting system for longer shots and precise target identification. With bright, fully multi-coated glass, a generous 5× fixed magnification, and a robust flip-to-side mount, you can transition from fast CQB sight pictures to confident PID and precision holds in one fluid motion. A dedicated windage and elevation alignment mechanism centers the red dot within the magnified view—without touching your red-dot’s zero—so your established point of impact remains intact.
The included mount sets the optical centerline at approximately 36 mm (1.4″) above the rail (absolute co-witness height), pairing cleanly with many AR-height red dots. Compact overall length and well-controlled weight make the Maverick 5×26 easy to balance on hunting carbines, training rifles, or patrol setups where you need both speed and reliable reach.
Key Parameters
- Magnification: 5× fixed
- Objective Lens Diameter: 26 mm
- Exit Pupil: 6.5 mm
- Eye Relief: 70 mm (2.8″)
- Field of View: 20.3 ft @ 100 yds (~6.8 m @ 100 m)
- Overall Length: 118 mm (4.6″)
- Center Height (with included mount): 36 mm (1.4″) from rail top to optical center (absolute co-witness)
- Weight (net): ~230 g (8.1 oz)
- Optical Coating: Fully multi-coated
Real-World Use Cases
Hunting: confirm details and take cleaner shots
Flip to 5× to read antler points, pick clear aiming references in brush, or hold precisely on small game across open fields. Roll back to 1× for close timber or moving targets without losing situational awareness.
Training & competition: speed plus precision on demand
Run your red dot at 1× for hosing close arrays, then rotate to 5× for small plates or partials at distance. The internal X/Y alignment keeps the dot visually centered through the glass while your primary zero remains untouched.
Duty & defensive carbines: positive ID at standoff distances
Use 5× to read hands, tools, and distinguishing features, or to confirm offset holds in variable light. The flip-to-side mount returns you to true 1× immediately for confined spaces, vehicles, or rapid transitions.
Mechanical Properties & Build Quality
- Chassis: 6061-T6 aluminum alloy body with protective rubber overmold for impact protection and secure handling.
- Mount: Flip-to-side, Picatinny/Weaver interface with positive detent for fast, repeatable transitions between 1× and 5×.
- Recoil & Environment: Shock tested to 750 g; water-resistant construction for field use.
- Alignment controls: On-housing windage & elevation allow dot centering in the magnified view without changing the red-dot zero.
- Optics: Fully multi-coated glass for high contrast and edge-to-edge clarity, helping you see the dot and target details cleanly.
Compatibility & Setup Notes
- Mount height matching: Included mount is absolute co-witness (~1.4″). If your red dot sits higher (e.g., lower-1/3 at ~1.57″ or 1.93″ tall mounts), use a compatible riser or taller magnifier mount to match centerline.
- Zero procedure: First, zero your red dot at the desired distance. Then use the magnifier’s W/E alignment screws to center the dot within the magnified field.
- Focus & diopter: Adjust for a crisp reticle and target at typical engagement ranges; re-check if conditions change substantially.
- Rail interface: Ensure full Picatinny/Weaver lug engagement. Verify mount tension after the initial live-fire cycle.
What’s in the Box
- Maverick 5×26 Magnifier (SCOT-08)
- Flip-to-side mount (absolute ~36 mm / 1.4″ center height)
- Mounting hardware & basic instructions
Technical Specifications
| Characteristic |
Specification |
| Model |
Maverick 5×26 (Old Model SCOT-08) |
| Magnification |
5× fixed |
| Objective Diameter |
26 mm |
| Exit Pupil |
6.5 mm |
| Eye Relief |
70 mm (2.8″) |
| Field of View |
20.3 ft @ 100 yds (~6.8 m @ 100 m) |
| Overall Length |
118 mm (4.6″) |
| Center Height (with mount) |
36 mm (1.4″) rail-to-optical center (absolute co-witness) |
| Weight (net) |
~230 g (8.1 oz) |
| Optical Coating |
Fully multi-coated |
| Body Material |
6061-T6 aluminum alloy with rubber armor |
| Mount Type |
Flip-to-side; Picatinny/Weaver interface |
| Shock & Water Resistance |
Shock tested to 750 g; water-resistant |
| Dot-Centering Adjustment |
Windage & elevation alignment (does not change red-dot zero) |
Summary
The Maverick 5×26 (SCOT-08) is a practical, cost-effective way to extend red-dot capability. You get fast 1× handling, instant 5× clarity, absolute-height alignment, and simple dot-centering—all without disturbing your primary zero. For hunters, competitors, and duty users who need credible reach and rapid transitions, it’s a dependable upgrade that adds range and precision without complicating your setup.
