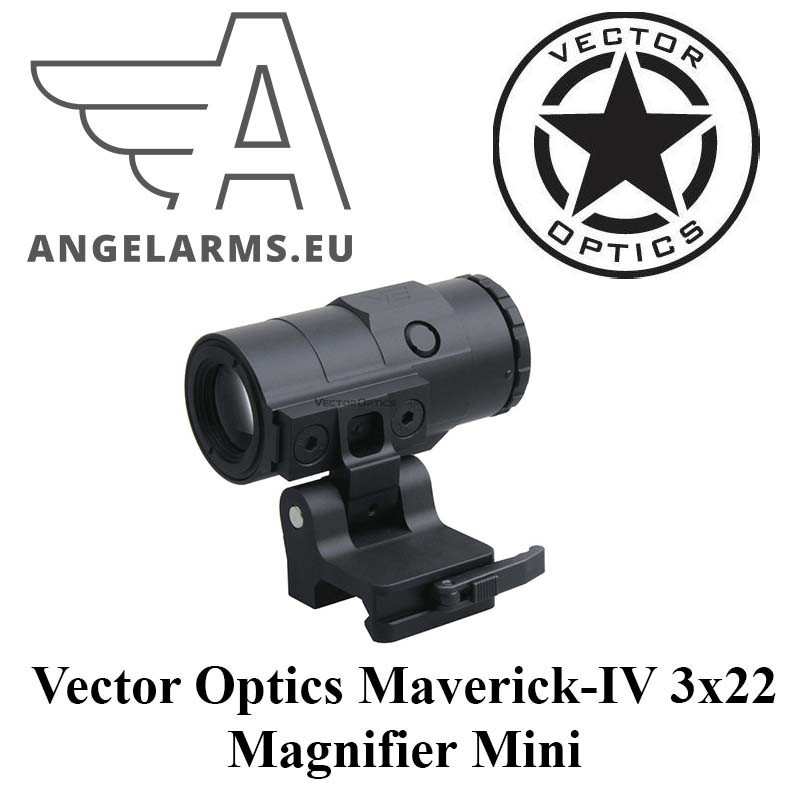

Vector Optics Maverick-IV 3×22 Micro Magnifier Mini – Compact Flip-to-Side Magnification for Red-Dot Precision
The Vector Optics Maverick-IV 3×22 Micro Magnifier Mini turns a speed-focused red dot into a confident mid-range solution without slowing you down. It combines crisp glass, a robust aluminum chassis, and a low-profile flip-to-side Picatinny mount so you can move instantly between unmagnified and magnified views during dynamic stages or field use.
Optical Excellence & Compact Design
- Magnification: Fixed 3× for fast identification and tighter aiming at medium distances.
- Objective Lens: 22 mm with fully multi-coated optics to maximize brightness and contrast.
- Eye Relief: Generous 69 mm (≈2.7 in) for comfortable head placement and recoil safety.
- Field of View: Approximately 49 ft @ 100 yd (~6°) to maintain situational awareness while zoomed.
- Diopter Focus: Quick user adjustment (about −2 to +2) for a tack-sharp image to your eye.
Rugged Build & Smart Mounting
- Durable Construction: Full-metal 6061-T6 aluminum housing with matte black finish; shockproof, nitrogen-purged fogproof, and IPX4 water-resistant.
- Compact Size: Only 80 mm (3.1 in) in length and about 270 g (9.5 oz), ideal for lightweight carbines.
- Flip-to-Side Picatinny QD Mount: Integrated quick-detach mount for instant transitions. Optical centerline sits 37 mm (1.4 in) above the rail for comfortable co-witness with many red dots.
- Alignment Adjustments: Windage & elevation alignment screws help center the magnifier to your red-dot’s optical axis for a clean, consistent sight picture.
Included Accessories
- 5 mm riser section for height tuning
- Hex key and adjustment wrench
- Lens cleaning cloth
- User manual
Technical Specifications
| Specification |
Details |
| Magnification |
3× fixed |
| Objective Lens |
22 mm |
| Eye Relief |
69 mm (2.7 in) |
| Field of View |
~49 ft @ 100 yd (~6°) |
| Diopter Adjustment |
Approx. −2 to +2 |
| Construction |
6061-T6 aluminum alloy |
| Length |
80 mm (3.1 in) |
| Height (Centerline) |
37 mm (1.4 in, base to lens center) |
| Weight |
270 g (9.5 oz) |
| Mount |
Flip-to-side Picatinny QD, 37 mm centerline |
| Weatherproofing |
IPX4; shock- and fog-resistant |
Summary
The Maverick-IV 3×22 Micro Magnifier Mini adds true mid-range clarity to your red dot while keeping your rifle agile. With a fast flip-to-side mount, straightforward alignment, and bright, crisp optics in a compact housing, it’s a smart upgrade for shooters who need CQB speed and confident holds farther out.
