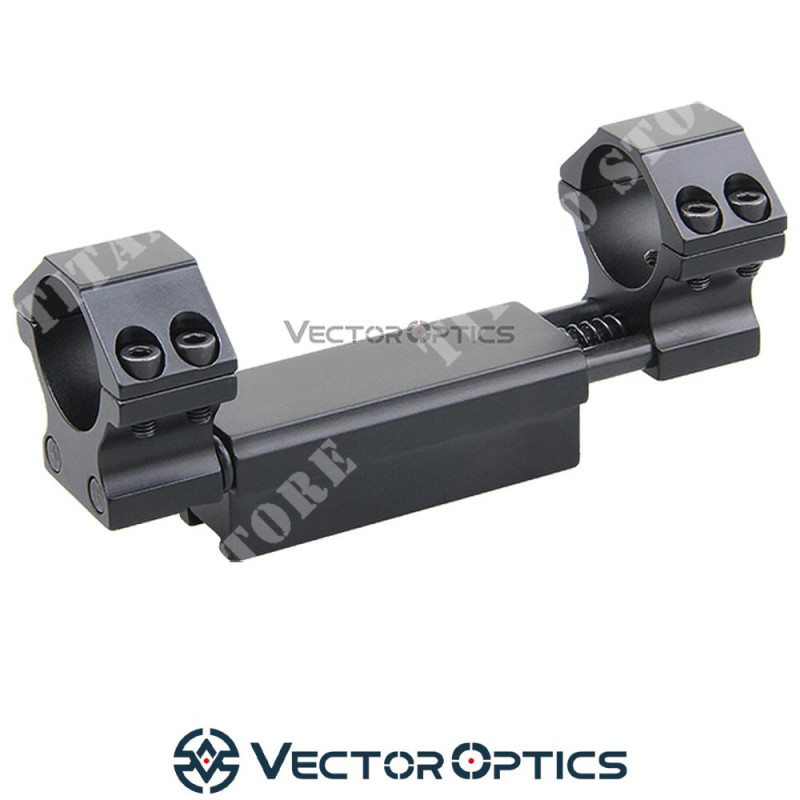

Vector Optics 30mm Dovetail Mount with Recoil Shock Absorber
Safeguard your high-performance scope against heavy recoil with the Vector Optics Shock Absorber Mount. Designed for 30mm tube scopes, this mount features a specialized internal spring system that effectively dampens recoil energy, preventing damage to internal optic components. Precision-machined from high-strength aluminum alloy, it attaches securely to standard 11mm Dovetail rails, making it ideal for high-power air rifles and rimfire platforms.
Key Features:
- Recoil Absorption System: Integrated spring mechanism absorbs and dissipates shock to protect the scope.
- 30mm Ring Diameter: Designed to fit scopes with a 30mm main tube.
- 11mm Dovetail Mount: Compatible with standard 11mm dovetail rails commonly found on air rifles.
- Secure Installation: Features 4 screws per ring cap and a built-in anti-recoil pin for maximum stability during rigorous use.
- High Profile: Provides a 40mm (1.6") center height to accommodate large objective lenses.
- Durable Build: Constructed from aerospace-grade 6061-T6 aluminum alloy with a matte black finish.
Physical & Mechanical Specifications
| Specification |
Details |
| Ring Diameter |
30 mm |
| Center Height |
40 mm / 1.6 in (Bottom to Center) |
| Total Height |
61 mm / 2.4 in |
| Total Length |
122 mm / 4.8 in |
| Gap Length |
80 mm / 3.2 in (Space between rings) |
| Ring Width |
48 mm / 1.9 in |
| Weight |
210 g / 7.4 oz |
| Material |
6061-T6 Aluminum Alloy |
| Finish |
Matte Black |
| Mount Type |
11mm Dovetail |
Important Note: Do not use more than 18 inch/lbs of torque on the scope ring screws or rail nuts to prevent damage.
