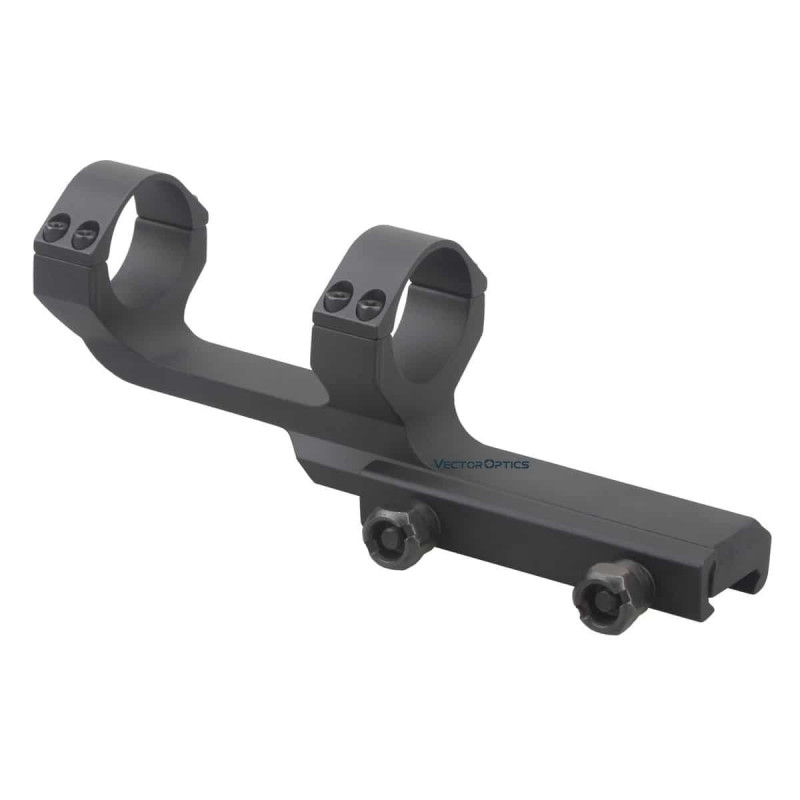

Vector Optics 30mm One Piece Offset Long Picatinny Mount V-10 – Extended Monoblock Scope Mount
The Vector Optics 30mm One Piece Offset Long Picatinny Mount V-10 is a precision-engineered monoblock mount designed for shooters who require extended mounting space and superior scope alignment on 21 mm Picatinny rails. Built from high-strength 6061-T6 aluminum alloy and finished in a rugged matte black anodization, this mount delivers durability and stability even under the recoil of high-caliber rifles. Its extended offset design provides additional eye relief adjustment, making it especially suitable for modern sporting rifles, AR platforms, and tactical carbines.
With an overall length of 165 mm and a 90 mm Picatinny base, the V-10 ensures secure attachment while offering flexibility for various scope configurations. Each 30 mm ring is secured with four Torx screws to provide even pressure and maximum scope retention. This extended mount design not only enhances stability but also allows shooters to position their optics optimally for improved comfort and accuracy.
Key Features
- One-piece monoblock design for maximum rigidity and alignment.
- 30 mm internal diameter suitable for a wide range of riflescopes.
- Offset long design (165 mm overall length) for extended eye relief adjustment.
- Precision CNC-machined from 6061-T6 aircraft-grade aluminum alloy.
- Matte black anodized finish for durability and reduced glare.
- Four Torx screws per ring ensure strong and even clamping force.
- Ring spacing of 58 mm provides support for long or heavy optics.
- Lightweight construction at only 196 g without compromising strength.
- Height of 38 mm (base to ring center) for optimal scope clearance.
- Compatible with 21 mm Picatinny / 1913 standard rails.
Durability & Build Quality
The V-10 monoblock mount is built to endure the rigors of real-world shooting. Its 6061-T6 aluminum alloy construction provides the perfect combination of strength and lightweight handling, while precision CNC machining ensures exact tolerances and consistent alignment. The matte black anodized surface not only adds resistance against corrosion and wear but also prevents glare in tactical and hunting scenarios. With its robust one-piece design, the V-10 offers a stable, shockproof platform for mounting scopes on rifles chambered in powerful calibers.
The reinforced ring system, each with four Torx screws, evenly distributes clamping pressure across the scope tube. This design minimizes the risk of tube deformation and ensures the optic remains secure and maintains zero even after extended firing sessions.
Practical Applications
Hunting
Hunters will benefit from the extended eye relief adjustment, which allows for comfortable shooting positions even with larger optics. The lightweight yet sturdy construction ensures the scope remains steady in the field under harsh environmental conditions.
Sport and Competition Shooting
The long offset design is ideal for competitive shooters who require precise scope positioning for target acquisition. Its monoblock rigidity provides consistent accuracy, making it a reliable choice for long-range and dynamic shooting disciplines.
Tactical and Professional Use
Tactical shooters and professionals benefit from the V-10’s one-piece strength and secure clamping system, which ensures optics remain locked and stable under heavy recoil. The offset style also provides additional rail space, allowing co-mounting of backup sights or other accessories.
Technical Specifications
| Model |
V-10 |
| Mount Diameter |
30 mm |
| Overall Length |
165 mm (6.5 inch) |
| Base Length |
90 mm (3.5 inch) |
| Ring Gap |
58 mm (2.3 inch) |
| Ring Width |
16 mm (0.6 inch) |
| Height |
38 mm (1.5 inch, from base to center of ring) |
| Weight |
196 g (6.9 ounce) |
| Material |
6061-T6 aluminum alloy |
| Finish |
Matte black anodized |
| Mount Type |
21 mm Picatinny / 1913 standard rail |
| Screws per Ring |
Four Torx screws |
| Design |
Offset long monoblock mount |
| Compatibility |
Designed for real firearm calibers, suitable for ARs and tactical rifles |
Summary
The Vector Optics 30mm One Piece Offset Long Picatinny Mount V-10 is a professional-grade monoblock scope mount offering exceptional durability, extended eye relief, and precision alignment. Its long offset design provides flexibility for scope positioning, while the CNC-machined 6061-T6 aluminum body with steel-reinforced Torx screws ensures rock-solid stability. Perfect for hunters, competitors, and tactical professionals, the V-10 is the ideal solution for securely mounting scopes on Picatinny rail-equipped rifles that demand accuracy and rugged reliability.
