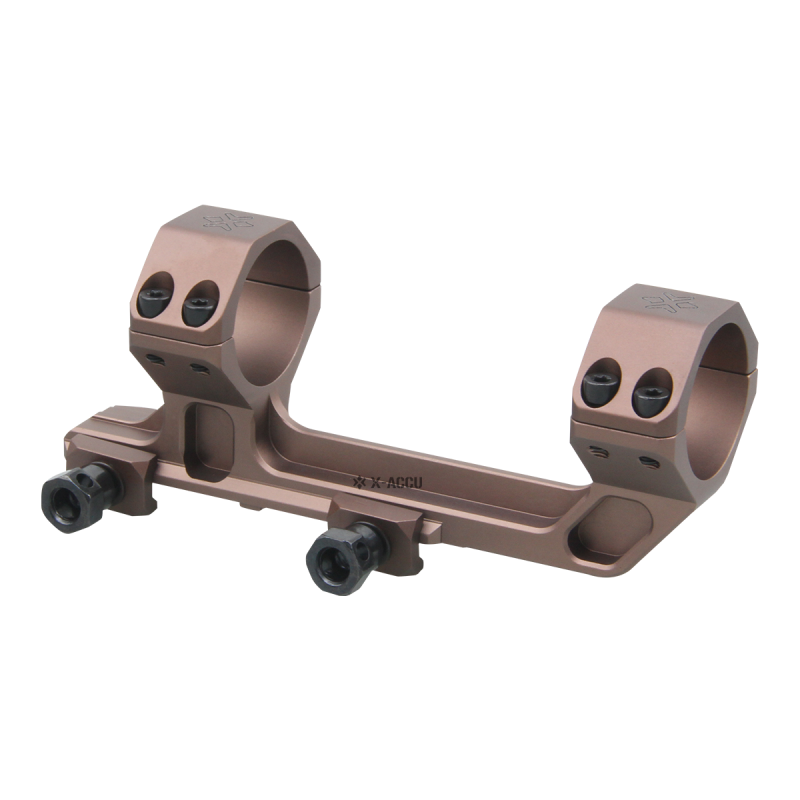

Vector Optics 30mm 20MOA 1-Piece Extended Picatinny AR Mount, Coyote FDE (XASR-3036 / V-21) — Fast, Solid, and Built for Long-Range Holds
The Vector Optics 30mm 20MOA 1-Piece Extended Picatinny AR Mount is a rugged cantilever monoblock designed for modern AR-pattern rifles that need dependable eye-relief, rock-solid zero retention, and extra elevation for distance. With a built-in 20 MOA incline (≈5.8 mrad), this mount preserves more of your scope’s internal elevation so you can dial further or hold cleaner at longer ranges. A 38 mm (1.5") optical centerline delivers a natural heads-up shooting position on flat-top receivers, while the extended one-piece body pushes your optic forward for ideal LPVO and mid-power scope placement. Full-CNC 6061-T6 construction, two cross-bolts, and four cap screws per ring keep everything locked down under recoil—day after day.
Key Features & Advantages
- 20 MOA built-in elevation: Conserves internal turret travel for 400–800 m+ applications, making dope and dialing simpler at distance.
- Extended cantilever layout: Moves the scope forward for correct eye relief on AR-15/AR-10 setups with LPVOs (1-6x/1-8x) and mid-range optics (2-10x/3-15x).
- 30 mm rings (monoblock): One-piece rigidity improves return-to-zero and alignment versus two-ring bases.
- AR-friendly height: 38 mm bottom-to-center (≈1.5") provides a comfortable cheek weld and clears common 24–50 mm objectives on flat-top rails.
- Dual cross-bolt clamp: Two steel cross-bolts bite into MIL-STD-1913 Picatinny rails for secure, repeatable mounting.
- FDE hard finish: Coyote FDE matte anodizing reduces glare and blends with modern FDE builds.
- Field-ready details: Four screws per ring cap distribute pressure evenly over the scope tube; full-CNC machining ensures precise fit and alignment.
Real-World Use Cases
Hunting & Practical Carbine
- LPVO builds (1-6x / 1-8x): The cantilever offset lets you run the eyepiece where you need it for fast target transitions and both-eyes-open shooting.
- Early/late light: Stable geometry helps you keep the reticle steady on small vital zones when light and heart rate are working against you.
Precision & Steel
- Long-range holds: The 20 MOA incline (≈5.8 mrad) preserves elevation travel for dialing 500–800 m+ on .223 Wylde, .308 Win, or 6.5 CM ARs.
- Repeatability: One-piece body and cross-bolt clamp resist shift from positional recoil and barricade pressure common in PRS-style gas-gun stages.
Duty/Training Carbines
- Set-and-forget zero: Four-screw caps and dual cross-bolts resist loosening through classes, patrol use, or high-round-count practice.
- Glove-friendly serviceability: Included T15 driver and accessible hardware simplify maintenance and confirmation checks.
Mechanical Strength & Environmental Protection
- Material: 6061-T6 aluminum alloy, full-CNC machined for rigidity and consistent ring concentricity.
- Finish: Coyote FDE matte anodizing for corrosion resistance and reduced signature.
- Rail interface: 1913 Picatinny with dual cross-bolts for high clamp force and anti-shift under recoil.
- Torque guidance: Ring cap screws max 18 in-lb; base cross-bolts typically 25 in-lb (acceptable up to 45 in-lb). Always use a calibrated torque driver and tighten in an even, alternating pattern.
What’s in the Box
- Vector Optics XASR-3036 30 mm 20 MOA 1-Piece Extended AR Mount (Coyote FDE)
- T15 Torx wrench (for ring caps / hardware)
- Retail packaging & quick-start info
Technical Specifications
| Characteristic |
Specification |
| Ring Diameter |
30 mm |
| Built-in Cant |
20 MOA (≈5.8 mrad) |
| Overall Length |
139 mm / 5.5" |
| Overall Height |
62 mm / 2.4" |
| Central Height (bottom to center) |
38 mm / 1.5" |
| Mounting Length on Rail |
120 mm / 4.7" |
| Ring Width |
46 mm / 1.8" |
| Ring Length (cap contact) |
21 mm / 0.8" |
| Ring Gap (center-to-center) |
73 mm / 2.9" |
| Rail Standard |
Picatinny (MIL-STD-1913) |
| Material |
6061-T6 aluminum alloy, full-CNC |
| Finish |
Coyote FDE matte anodized |
| Hardware |
4 cap screws per ring, dual cross-bolts |
| Weight |
155 g / 5.5 oz |
| Included Tool |
T15 Torx wrench |
| Ring Cap Torque |
≤ 18 in-lb (2.0 N·m) |
| Base Cross-Bolt Torque |
~ 25 in-lb (max 45 in-lb) / 2.8–5.1 N·m |
Installation Notes (Best Practice)
- Set the mount square on a clean, degreased Picatinny rail and snug the cross-bolts evenly before final torquing.
- Level the scope, then tighten cap screws in an alternating “X” pattern to the recommended torque, ensuring even gap left/right.
- Avoid excessive thread compounds; if used, follow “dry” vs “wet” torque guidance from your tool and hardware manufacturer.
Summary
The Vector Optics XASR-3036 30 mm 20 MOA Extended AR Mount gives AR shooters a durable, FDE-finished, one-piece solution that extends eye relief and adds usable elevation for longer shots. Its 38 mm center height, dual cross-bolt clamp, and full-CNC 6061-T6 body deliver repeatable zero and confidence under recoil—ideal for LPVOs and mid-power scopes on AR-15 and AR-10 platforms.
