Vector Optics 30mm 1-Piece Extended Picatinny AR Mount Coyote FDE (V-19 / XASR-3035) — Neutral 0 MOA, Cantilever Design & 1.5″ Center Height

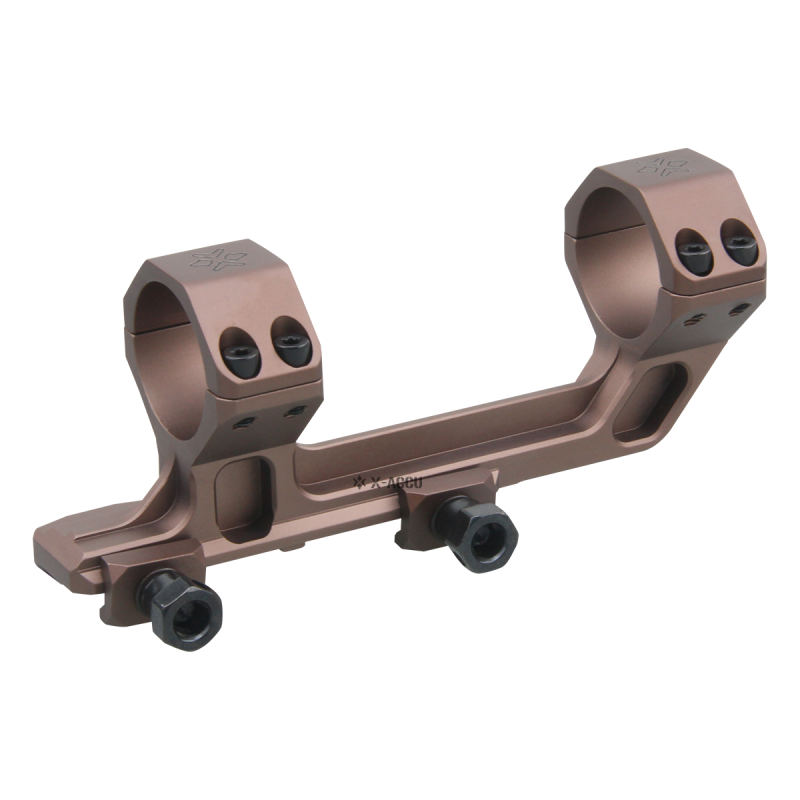

The Vector Optics 30mm 1-Piece Extended Picatinny AR Mount (V-19) is a rock-solid cantilever monoblock for AR-pattern rifles that need correct eye relief, consistent zero retention, and a neutral 0 MOA base for true mechanical center at common zero distances. With its 38 mm (1.5″) optical centerline and forward-offset layout, it positions LPVOs and mid-power scopes exactly where they belong on flat-top receivers. Precision-machined from 6061-T6 aluminum and finished in a durable Coyote FDE matte anodizing, this mount pairs tight concentricity with dependable clamping on any MIL-STD-1913 Picatinny rail.
Key Features & Advantages
- Neutral 0 MOA base: Keeps your scope’s internal elevation near mechanical center for typical 50–200 m zeros and dope tables that match your reticle.
- Extended cantilever body: Pushes the optic forward for proper eye relief on AR-15/AR-10 platforms with LPVOs (1-6×/1-8×) and mid-range optics (2-10×/3-15×).
- AR-friendly height: 38 mm (1.5″) bottom-to-center gives a natural, heads-up posture and clears common 24–50 mm objectives on flat-top rails.
- 30 mm monoblock rings: One-piece construction improves alignment and return-to-zero compared with separate bases.
- Four-screw caps per ring: Even pressure across the tube reduces the risk of marring and scope shift under recoil.
- Dual clamp nuts with cross-bolts: Secure, repeatable attachment to MIL-STD-1913 Picatinny rails for duty, training, and competition use.
- Coyote FDE matte finish: Low-glare, corrosion-resistant surface that pairs cleanly with modern FDE builds.
Real-World Use Cases
Hunting & Practical Carbine
On driven hunts or woodland edges, the cantilevered geometry lets you run the eyepiece where it’s fast. The neutral 0 MOA base means you retain mid-range flexibility without “oversloping” your zero—ideal for LPVOs on general-purpose carbines.
Training, Duty & High Round Count
One-piece rigidity, four-screw caps and dual clamp nuts resist loosening through recoil cycles, positional pressure, and rough handling in classes or patrol environments. A consistent mount reduces variables when you’re confirming zero after maintenance or transport.
Steel & Mid-Range
For gas-gun steel out to a few hundred meters, the 0 MOA base keeps your scope centered, so your clicks track true and your holds stay predictable. It’s a set-and-forget foundation for any 30 mm tube optic.
Mechanical Strength & Protection
- Material: 6061-T6 aluminum alloy, full-CNC machined for stiffness and ring concentricity.
- Finish: Coyote FDE matte anodizing for durability and reduced visual signature.
- Rail Interface: MIL-STD-1913 Picatinny; extended footprint (120 mm) for secure clamping and alignment.
- Torque Guidance: Ring cap screws ≤ 18 in-lb; clamp nuts typically 25 in-lb (acceptable up to 45 in-lb). Use a calibrated driver and tighten in an alternating pattern.
Accessories in the Box
- Vector Optics 30 mm 1-Piece Extended AR Mount (V-19 / XASR-3035)
- Hex/Torx key for ring caps and clamp nuts
- Retail packaging and quick-start info
Technical Specifications
| Characteristic |
Specification |
| Ring Diameter |
30 mm |
| Built-in Cant |
0 MOA (neutral) |
| Overall Length |
139 mm / 5.5″ |
| Mounting Length on Rail |
120 mm / 4.7″ |
| Overall Height |
62 mm / 2.4″ |
| Center Height (bottom to optical center) |
38 mm / 1.5″ |
| Ring Width |
46 mm / 1.8″ |
| Ring Length (cap contact) |
21 mm / 0.8″ |
| Ring Gap (center-to-center) |
73 mm / 2.9″ |
| Rail Standard |
MIL-STD-1913 Picatinny |
| Material |
6061-T6 aluminum alloy |
| Finish |
Coyote FDE matte anodized |
| Hardware |
4 cap screws per ring; dual clamp nuts with cross-bolts |
| Weight |
155 g / 5.5 oz |
| Recommended Torque (ring caps) |
≤ 18 in-lb (≈ 2.0 N·m) |
| Recommended Torque (clamp nuts) |
~ 25 in-lb; acceptable up to 45 in-lb (≈ 2.8–5.1 N·m) |
Installation Notes (Best Practice)
- Seat the mount on a clean, degreased Picatinny rail; snug the clamp nuts evenly before final torque.
- Level the rifle and scope; tighten ring caps in an alternating “X” pattern to the specified torque with even left/right gaps.
- Apply a small amount of non-permanent thread treatment only if required; follow “dry” vs “wet” torque guidance of your tool/hardware.
- Paint pen witness marks on screws for quick visual checks during training or field use.
Summary
The Vector Optics 30mm 1-Piece Extended Picatinny AR Mount (V-19) is a dependable, FDE-finished foundation for LPVOs and mid-power scopes on AR platforms. Its neutral 0 MOA base, 38 mm center height, and cantilevered body deliver correct eye relief and a consistent zero, while the one-piece 6061-T6 construction and dual clamp nuts keep everything locked down through recoil and hard use.
