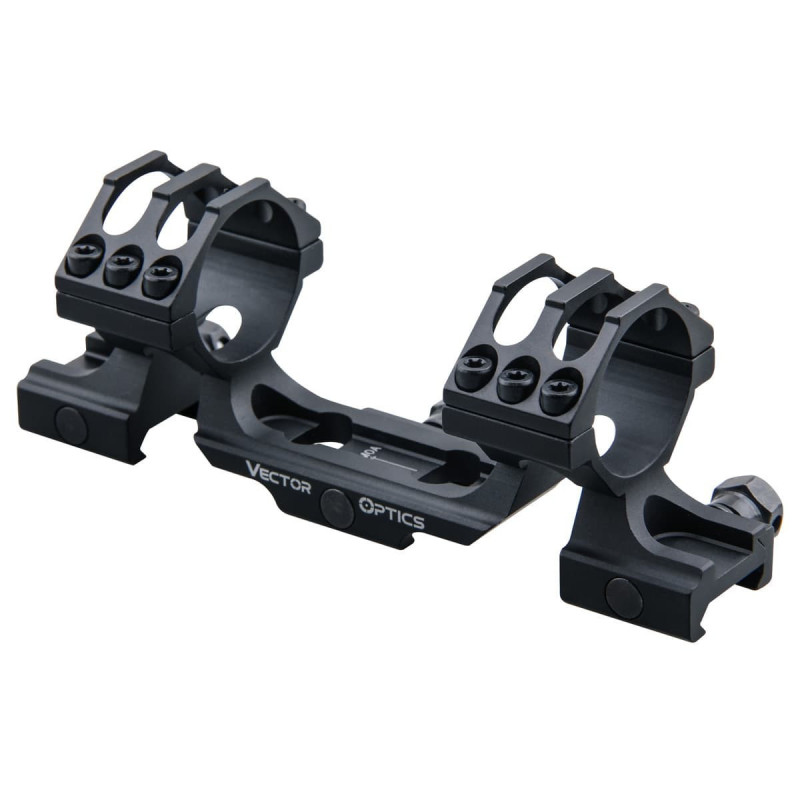

Vector Optics 30mm OP 1.25" Profile Picatinny Mount (V-6) – Skeletonized One-Piece Precision Scope Mount
The Vector Optics 30mm OP 1.25" Profile Picatinny Mount (V-6) is a rugged, precision-engineered one-piece scope mount designed for long-range and tactical shooters. Built from 6063-T6 aircraft-grade aluminum and fully CNC-machined, it combines strength, lightness, and reliability in a compact skeletonized body. With a 35 mm (1.25") height from base to ring center and robust six-screw-per-ring clamping system, this mount delivers superior scope stability, even under the extreme recoil of high-caliber rifles such as the Lapua Magnum .338. Its optimized design and three heavy-duty cross bolts ensure absolute zero retention, making it ideal for hunters, competitive shooters, and professionals who demand maximum performance.
Key Features
- 30 mm Tube Compatibility: Specifically designed for riflescopes with 30 mm main tubes.
- Medium-High Profile Height: 35 mm (1.25") base-to-center height provides ample clearance for optics with larger objectives.
- One-Piece Skeletonized Design: Maximizes rigidity while reducing weight for a balanced setup.
- Six Screws per Ring: Heavy-duty clamping system ensures superior hold and zero shift under recoil.
- Three Cross Bolts: Reinforces stability on Picatinny rails, preventing movement under heavy use.
- Lapua Magnum Tested: Proven performance under the extreme recoil of .338 LM cartridges.
Durability & Build Quality
- 6063-T6 Aluminum Alloy: Combines lightweight construction with exceptional structural integrity.
- Full CNC Machining: Precision manufacturing ensures consistent tolerances and perfect alignment.
- Black Matte Anodized Finish: Resistant to corrosion, scratches, and reflections in harsh environments.
- Skeletonized Structure: Reduces weight without sacrificing rigidity, maintaining rifle balance.
- Recoil Resistance: Designed and tested to withstand the heaviest calibers used in long-range shooting.
Practical Applications
- Long-Range Precision Shooting: Built for shooters engaging targets beyond 500 meters with large-caliber rifles.
- Hunting: Provides a stable and lightweight platform for high-powered optics in rugged outdoor conditions.
- Competitive Shooting: Ensures repeatable accuracy and zero retention in PRS and F-Class matches.
- Tactical & Professional Use: Trusted for military, police, and professional marksmen requiring absolute reliability.
Installation
Designed to mount directly onto 21 mm Picatinny rails, the V-6 features three cross bolts that secure the mount solidly in place. Each ring is tightened with six screws for maximum grip and stability. Installation is straightforward with common tools, and the robust design ensures a repeatable and reliable zero, even after removal and reinstallation.
Technical Specifications
| Characteristic |
Specification |
| Model |
V-6 (SCTM-36) |
| Tube Diameter |
30 mm |
| Mount Length |
146 mm / 5.7 in |
| Ring Gap |
57 mm / 2.2 in |
| Ring Width |
26 mm / 1.0 in |
| Profile Height |
35 mm / 1.25 in (base to ring center) |
| Material |
6063-T6 Aircraft-Grade Aluminum Alloy |
| Finish |
Matte Black Anodized |
| Weight |
150 g / 5.3 oz |
| Mount Type |
21 mm Picatinny Rail |
| Design |
One-Piece Skeletonized Monoblock |
| Fastening System |
6 Screws per Ring, 3 Cross Bolts |
| Recoil Resistance |
Tested with .338 Lapua Magnum |
Summary
The Vector Optics 30mm OP 1.25" Profile Picatinny Mount (V-6) is a high-strength, precision-engineered mount designed for professional shooters. With its skeletonized monoblock design, six-screw rings, and extreme recoil resistance, it provides maximum stability and accuracy for large optics. Lightweight yet rugged, it is the ideal solution for hunters, competitive marksmen, and tactical operators who demand a reliable scope mount for long-range and high-caliber shooting platforms.
