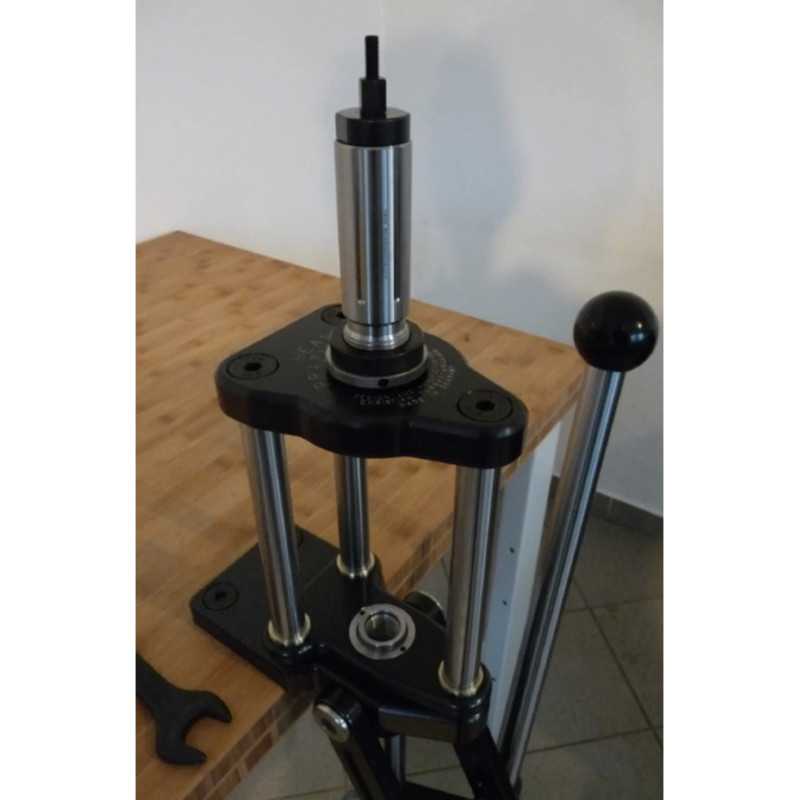

Turban Heavy Press Präzipress 120 mm
The Turban Heavy Press Präzipress 120 mm is a precision reloading press machined entirely from solid material and designed for exceptional alignment, stability, and consistent operation. Its generous 120 mm lifting height provides ample working clearance for reloading large-calibre cartridges, including .408 CheyTac and similar cartridges. Featuring three bearing-supported sliding columns, a symmetrical design, and precision-finished components, this press is engineered for demanding reloading applications.
Key Features:
- Solid-Machined Construction: Manufactured entirely from solid material, with high-quality finishing across all components.
- 120 mm Lifting Height: Provides generous clearance for large-calibre cartridge reloading.
- Three Bearing-Supported Sliding Columns: Support smooth, stable, and precise press movement.
- High Centring Accuracy: Designed to maintain precise alignment between the press and reloading die.
- Symmetrical Design: Ensures linear force transmission through the handle and prevents tilting moments during operation.
- Double Limit Switch System: Limit switches on both sides of the top dead centre help maintain consistent depth and closing distance while preventing hooking, rebound, and backlash.
- Ambidextrous Handle: The press lever can be mounted on either the right or left side to suit individual preferences.
- Spent Primer Collection: Spent primers are directed into a collection container.
- Interchangeable Bronze Bushings: All moving parts operate in interchangeable bronze bushings for precise movement.
- Secure Sleeve Support: Hardened, spring-loaded ball pins provide precise and secure positioning of the sleeve support.
- Thread Adapters Included: Supplied with adapters for additional reloading die thread sizes.
Technical Specifications
| Specification |
Details |
| Brand |
Turban |
| Model |
Heavy Press Präzipress 120 mm |
| Construction |
Machined entirely from solid material |
| Lifting Height |
120 mm |
| Sliding Columns |
3, bearing-supported |
| Standard Press Thread |
1 1/2" × 12 UNF |
| Included Thread Adapters |
1 1/4" × 12 UNF and 7/8" × 14 UNF |
| Handle Configuration |
Ambidextrous; lever can be mounted on the right or left |
| Moving Part Bushings |
Interchangeable bronze bushings |
| Spent Primer Collection |
Spent primers directed into a collection container |
Precision and Performance
The Turban Heavy Press Präzipress 120 mm combines precise alignment with a stable, symmetrical operating design. Its double limit switch system helps provide repeatable depth and closing distance, while the bearing-supported columns and interchangeable bronze bushings support smooth movement. The reversible press lever allows the setup to be adapted for either left- or right-handed operation.
With its 120 mm lifting height, robust construction, and included thread adapters, the Turban Heavy Press Präzipress 120 mm is designed for reloaders who require precision and generous working clearance for large-calibre cartridges.
