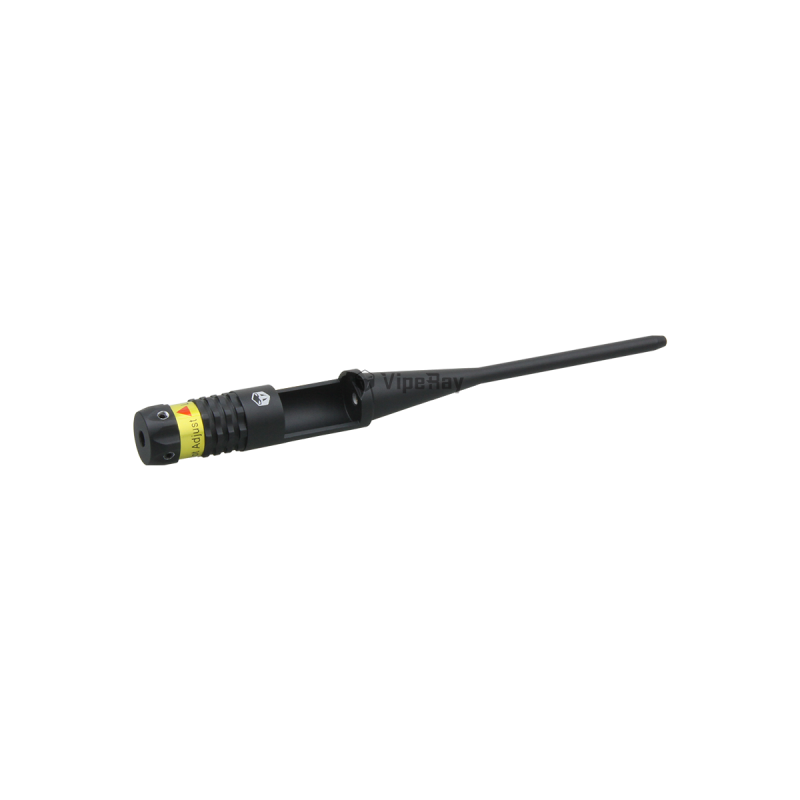

Vector Optics VipeRay Red Laser Bore Sight (.22–.50 Cal)
The VipeRay Red Laser Bore Sight (LBC01) is a precision zeroing tool designed to speed up sight alignment across firearms ranging from .22 to .50 caliber. With a factory-centered laser and interchangeable adapters, this compact, durable device allows shooters to get their sights accurate on paper in mere moments.
Core Functionality
- Low-Power Laser (<5 mW): Emitting a sharp red beam at 650 nm wavelength for visibility in most lighting conditions.
- Caliber Coverage: Includes four adapters to securely fit barrels from .22 to .50 caliber, enabling broad multi-platform compatibility.
- High-Precision Alignment: Factory-centered screws and snug fit adapters minimize wobble and ensure consistent bore alignment.
Design & Durability
- Material: Machined from 6061‑T6 aluminum alloy with a matte black anodized finish for strength and protection.
- Compact Form Factor: Measures 138 mm in length with a head diameter of 15.5 mm and tail diameter of 4.4 mm, weighing only 30 g (1.1 oz).
- Battery Powered: Uses a single LR44 battery (not included) for safe and hassle-free zeroing.
Zeroing Made Easy
By inserting the bore sight into your empty chamber using the correct adapter, you project a laser dot along the firearm’s bore axis. Line up your scope or iron sights to that dot, and you’ll be “on paper” before even firing a single round. This method saves time, ammunition, and effort during sight-in sessions.
Typical Applications
- Zeroing Firearms: Perfect for aligning sights on pistols, rifles, or shotguns without live fire.
- Maintenance Checking: Great for confirming alignment after sight installation or transportation.
- Pre-Zero Setup: Allows you to start shooting within a few clicks of your zero setting at the range.
Technical Specs
| Laser Power |
<5 mW (Class IIIa) |
| Wavelength |
650 nm (red) |
| Compatible Calibers |
.22 to .50 |
| Material |
6061‑T6 Aluminum Alloy |
| Finish |
Matte Black Anodized |
| Weight |
≈ 30 g / 1.1 oz |
| Length |
138 mm / 5.4″ |
| Head Diameter |
15.5 mm |
| Tail Diameter |
4.4 mm |
| Battery Type |
LR44 (not included) |
| Adapters Included |
4 caliber-adjustable sleeves |
In the Box
- VipeRay Red Laser Bore Sight unit (LBC01)
- Four caliber adapters (.22–.50)
- Factory-mounted screws for alignment precision
- Hex key and instruction manual
Summary
The Vector Optics VipeRay Red Laser Bore Sight is an indispensable tool for any shooter looking to align optics or iron sights quickly and accurately. Its lightweight build, durable construction, and multiple fit adapters deliver consistent results on pistols and rifles alike. Get on paper sooner and reduce range time—with precision and efficiency.
