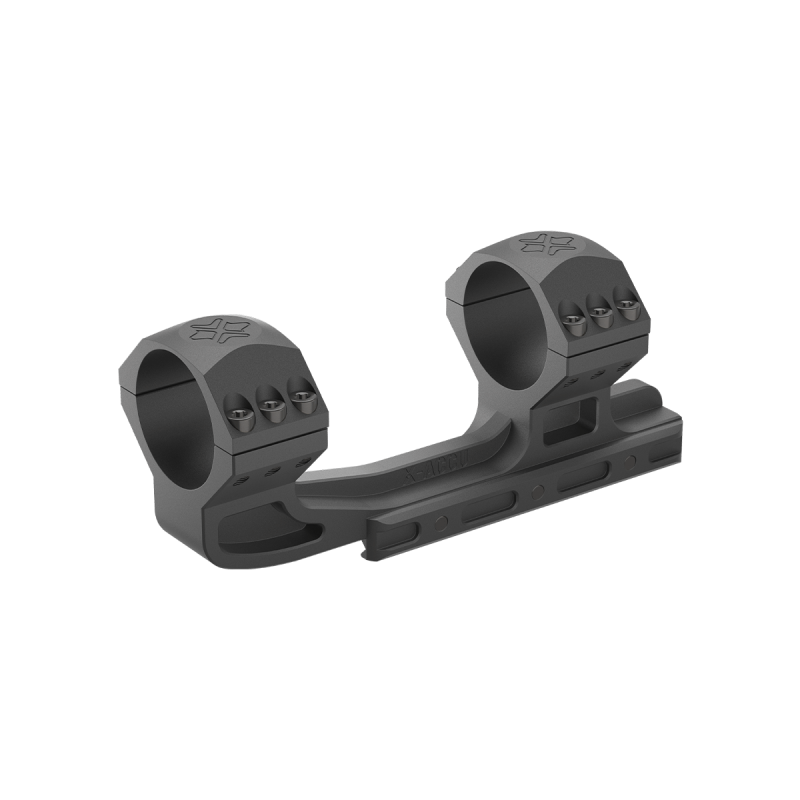

Vector Optics X‑ACCU 34 mm Cantilever 0 MOA One‑Piece High Picatinny Mount – Precision Elevated Mounting without Cant
The Vector Optics X‑ACCU 34 mm 0 MOA Cantilever One‑Piece High Picatinny Mount combines elevated optic positioning with a straight zero alignment, making it ideal for shooters using high-magnification scopes on AR-platform rifles or long-range precision systems. Built to exacting standards and CNC-machined from aircraft-grade aluminum alloy, this mount delivers rugged performance and consistent zero retention under recoil.
High Profile & Zero Cant Design
With a center height of approximately 40 mm (1.6 in) from the rail to the optical axis and a straight 0 MOA (no elevation cant), this mount is perfect when your scope contains independent elevation adjustment or when shooting at moderate distances without requiring added cant. The elevated positioning simplifies eye relief and cheek weld across large objective lenses.
Core Features at a Glance
- One-Piece Cantilever Body: Offers superior alignment and rigidity compared to two-piece mounts.
- 0 MOA Cant (No Built-In Tilt): Ensures predictable internal turret adjustment range without offset.
- 34 mm Tube Compatibility: Supports heavier, higher-magnification scopes requiring larger tubes.
- High Center Height: 40 mm allows mounting large objective scopes above rail-mounted accessories.
- 21 mm Picatinny Rail Interface: Universal compatibility with standard modern rail systems.
- Six Torx Screws per Ring: Greater clamping force and zero retention under heavy recoil.
- Lightweight & Durable: Weighs just ~212 g (8.3 oz) while maintaining strength and stability.
Material & Protective Finish
Constructed from high-strength aluminum alloy and finished in a durable matte black coating, this mount resists corrosion, abrasion, and harsh field conditions. The build supports rugged use without significant added weight to your firearm platform.
Recommended Installation Torque
To ensure optimal clamping and prevent damage, apply a maximum of 18 in·lb torque on the scope ring screws and a recommended 25 in·lb (up to 45 in·lb max) on the clamp nuts attaching the mount to the rail. A T15 Torx wrench is included for accurate tightening.
Detailed Specifications
| Specification |
Details |
| Tube Diameter |
34 mm |
| Center Height |
40 mm / 1.6 in |
| Length |
147 mm / 5.8 in |
| Height |
64 mm / 2.5 in (total mount height) |
| Ring Width |
26 mm / 1 in |
| Gap Length (between rings) |
70 mm / 2.7 in |
| Material |
Aircraft-grade aluminum alloy |
| Weight |
~212 g / 8.3 oz |
| Mount Type |
1913 Picatinny rail |
| Finish |
Matte Black Anodized |
| Screws per Ring |
6 × T15 Torx |
| Torque Limits |
Ring screws: ≤ 18 in·lb; Clamp nuts: 25 in·lb (max 45 in·lb) |
Best Use Cases
Ideal for precision shooters using scopes with >56 mm objectives on flat-top rifles, where internal elevation adjustment is preferred over built-in cant. Works well with tactical, hunting, and competitive platforms requiring elevated optic clearance and stable mounting.
Package Contents
- 1 × X‑ACCU 34mm 0 MOA Cantilever Mount
- 1 × T15 Torx wrench
- Retail packaging with foam protection
Summary
The Vector Optics X‑ACCU 34mm 0 MOA One-Piece Mount offers high rigidity, elevated mounting, and consistent zero retention for serious precision shooters. Its 0 MOA design, strong machining, and compact form deliver reliability in tactical, hunting, or long-range applications—without unnecessary cant offset. Order from AngelArms today to enhance your optics rig with professional-class support.
