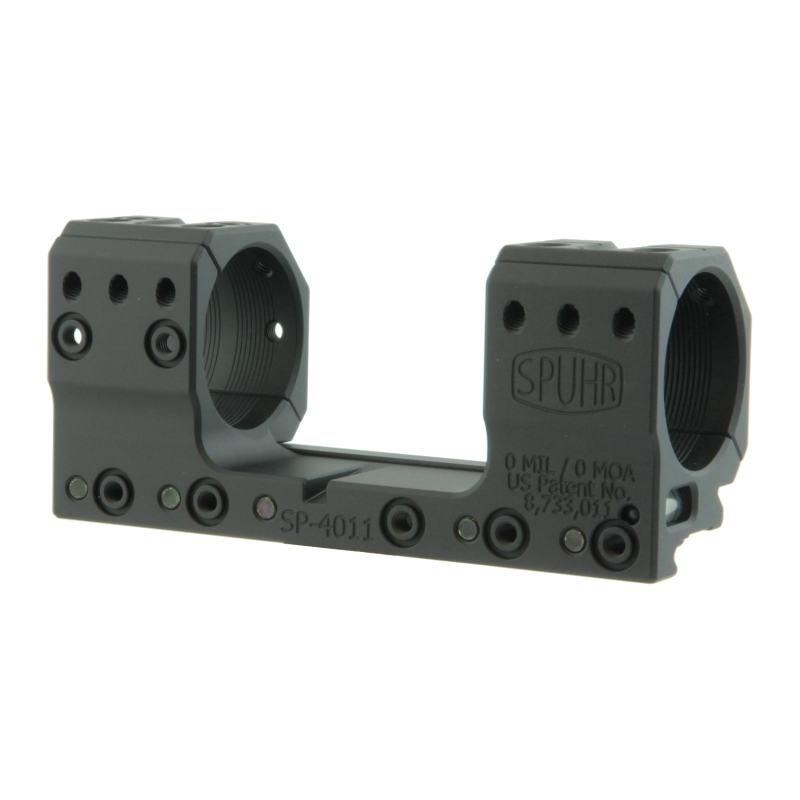

"The GAP Mount"
Made on request from George Gardner of GA Precision.
Special mount with extra low height. Due to the low height it will not work with scopes like S&B 5-25 and 3-20, the Kahles k624i, or Vortex Razor as the erector housing will collide with the bridge between the rings. Will fit Bushnell scopes and S&B 3-12x50 and 4-16x50.
Aiside from the low height a special feature of this mount is an extra front clamping screw allowing the SP-4011 to be mounted partly forward - in a cantilever position - on the Picatinny rail of the action.
This is especially useful on AR-type rifles and actions with integrated Picatinny rails like Defiance, Surgeon and Impact, where the rail isn't sufficiently long for the desired eye-relief with some scopes.
The IDEAL SCOPE MOUNT SYSTEM series of mounts feature seven set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets
0 MIL/0 MOA
Height: 28 mm/1.102”
Clearance: 5.5 mm/.216" (from the bottom of the tube to bridge of the mount body)
Length: 121 mm/4.76”
Weight: 231 g/8.1 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails
