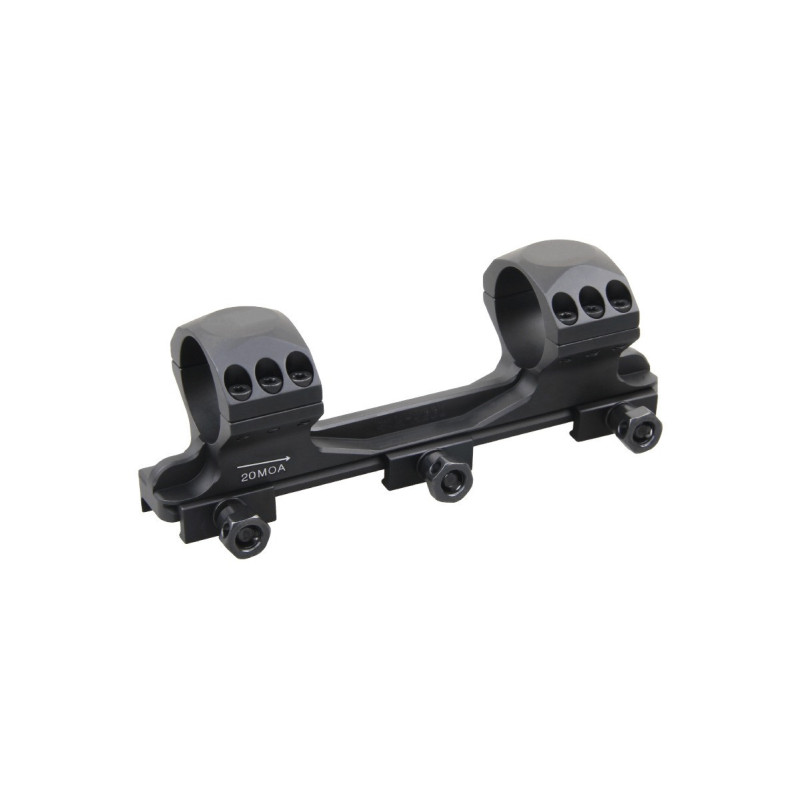

Vector Optics X-ACCU 30mm 1.2" Medium Profile 1-Piece 20MOA Picatinny Mount
The Vector Optics X-ACCU 30mm 1.2" Medium Profile 1-Piece 20MOA Picatinny Mount is engineered for precision shooters who demand uncompromising stability, perfect alignment, and added elevation compensation for long-range accuracy. Built from 6061-T6 aircraft-grade aluminum and finished in a hard-anodized matte black coating, this mount delivers exceptional strength, corrosion resistance, and a professional tactical appearance.
Enhanced Long-Range Capability with 20MOA Cant
Featuring a built-in 20MOA / 6MIL incline, this mount provides additional elevation adjustment for your riflescope, allowing shooters to fully utilize their optic's internal adjustment range. This is particularly beneficial for extreme long-range shooting, where more elevation is required to engage distant targets without maxing out the scope's turrets.
Monoblock Construction for Perfect Alignment
The one-piece monoblock design ensures both rings remain perfectly aligned, reducing the risk of tube stress and maintaining zero under heavy recoil. This construction is significantly stronger than separate rings, making it ideal for rifles chambered in high-powered calibers.
Medium Profile Versatility
With a 32mm (1.2") central height, this medium-profile mount accommodates a wide range of riflescopes, including those with larger objective lenses, while maintaining a comfortable cheek weld for rapid target acquisition.
Technical Specifications
| Specification |
Detail |
| Ring Diameter |
30 mm |
| Overall Length |
154 mm / 6.1 in |
| Overall Height |
59 mm / 2.3 in |
| Mount Length |
154 mm / 6.1 in |
| Ring Width |
45.5 mm / 1.8 in |
| Central Height |
32 mm / 1.2 in (base to ring center) |
| Ring Length |
26 mm / 1.0 in |
| Gap Between Rings |
70 mm / 2.8 in |
| Material |
6061-T6 aluminum alloy |
| Finish |
Hard anodized matte black |
| Weight |
230 g / 8.5 oz |
| Mount Type |
1913 Picatinny |
| Screws per Ring |
6 Torx screws |
| Cant |
20MOA / 6MIL |
Precision Clamping and Torque Guidelines
Each ring uses six Torx screws to deliver consistent and even clamping force along the scope tube. A steel cross-bolt locks securely into Picatinny rail slots, preventing movement under recoil.
- Scope ring screws: Do not exceed 18 inch-pounds
- Base clamp nuts: Recommended 25 inch-pounds (maximum 45 inch-pounds)
Included Accessories
- Hex key for installation
- Retail packaging
Practical Applications
- Long-range precision shooting with additional elevation compensation
- Competition rifles needing rock-solid optic alignment
- Hunting setups requiring secure mounts for high-powered optics
- Rifles chambered in heavy-recoil calibers such as .300 Win Mag and .338 Lapua Magnum
Summary
The Vector Optics X-ACCU 30mm 1.2" Medium Profile 1-Piece 20MOA Picatinny Mount offers unmatched rigidity, perfect scope alignment, and built-in long-range shooting advantage. With premium materials, precision machining, and a recoil-proof design, it is a professional-grade mounting solution for serious marksmen.
