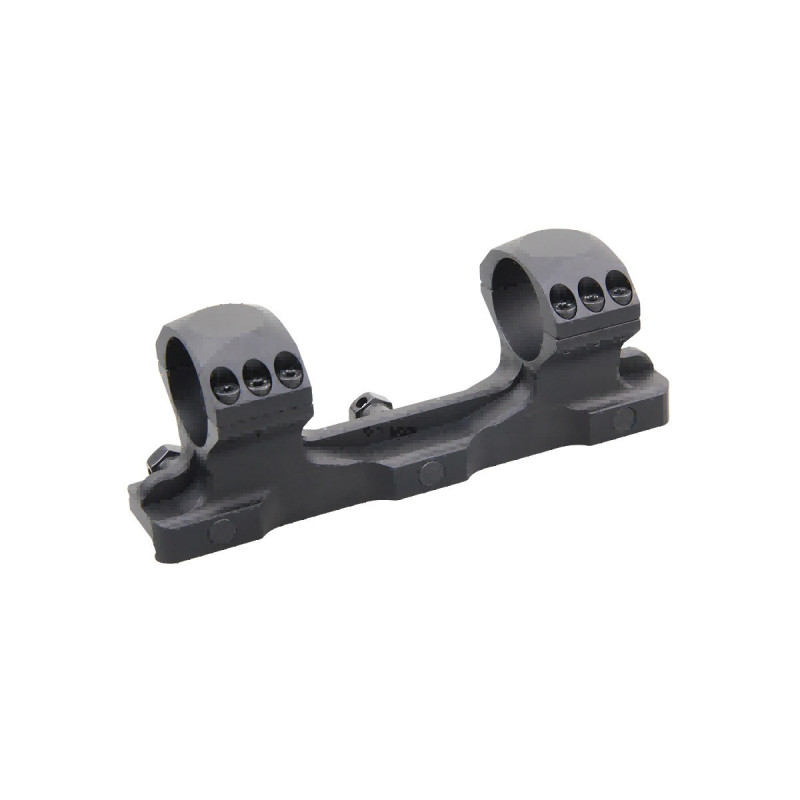

Vector Optics X-ACCU 30mm 1.4" High Profile 1-Piece 20MOA Picatinny Mount (V-14)
The Vector Optics X-ACCU 30mm 1.4" High Profile 1-Piece 20MOA Picatinny Mount is a premium-grade, precision-engineered scope mounting solution for shooters who demand maximum durability, stability, and long-range accuracy. Built from aerospace-grade 6061-T6 aluminum alloy with a hard-anodized matte black finish, this mount is designed to withstand the harshest recoil forces from high-caliber rifles, making it an ideal choice for tactical, competition, and hunting applications.
Precision Engineering with 20MOA Advantage
Featuring an integrated 20MOA (6 MIL) forward cant, this mount allows shooters to maximize their elevation adjustment range for extreme long-distance engagements. By providing a built-in downward tilt towards the muzzle, it helps retain more internal elevation adjustment in the scope, ensuring the ability to dial in for shots well beyond standard zero distances.
High Profile Design for Large Objective Lenses
With a central height of 35mm (1.4") from the base to the ring center, the high-profile design accommodates scopes with large objective lenses (up to 56mm) while maintaining adequate clearance from the rifle barrel. The 1-piece construction ensures perfect alignment between both rings, improving accuracy and eliminating the risk of misalignment during installation.
Heavy-Duty Construction for Maximum Stability
- Precision CNC-machined from 6061-T6 aluminum alloy for strength and lightweight performance.
- Six Torx screws per ring ensure a rock-solid hold on the optic under heavy recoil.
- Steel cross-bolts enhance strength and prevent movement under repeated firing.
- Gap length of 70mm (2.8") to fit a wide variety of scope mounting lengths.
Technical Specifications
| Category |
Specification |
| Diameter |
30mm |
| Overall Length |
154mm / 6.1in |
| Overall Height |
59mm / 2.3in |
| Mount Length |
154mm / 6.1in |
| Ring Width |
45.5mm / 1.8in |
| Central Height |
35mm / 1.4in |
| Ring Length |
26mm / 1.0in |
| Gap Length |
70mm / 2.8in |
| Material |
6061-T6 aluminum alloy |
| Weight |
240g / 8.5oz |
| Mount Type |
1913 Picatinny |
| Finish |
Hard anodizing, black matte |
| Screws per Ring |
6 |
| Inclination |
20MOA / 6 MIL |
Installation and Torque Recommendations
The mount is supplied with a hex key for easy installation and adjustment. For optimal performance:
- Scope ring screws: Do not exceed 18 in/lbs of torque.
- Cross-bolt nuts: Recommended 25 in/lbs torque (maximum 45 in/lbs).
- Ensure even tightening across all screws to maintain perfect scope alignment.
Included Accessories
- Hex key (for both scope ring screws and cross-bolt nuts)
- Retail packaging for secure transport
Ideal Use Cases
- Long-range tactical shooting
- Precision rifle competitions
- Hunting with large-caliber rifles
- Rifles with scopes requiring extra elevation adjustment for extended distances
Summary
The Vector Optics X-ACCU 30mm 1.4" High Profile 1-Piece 20MOA Picatinny Mount (V-14) delivers outstanding durability, rock-solid stability, and long-range performance enhancement. Whether you are engaging targets at extreme distances or mounting a large-objective precision scope, this mount provides the stability, alignment, and extra elevation capability needed for peak shooting performance.
