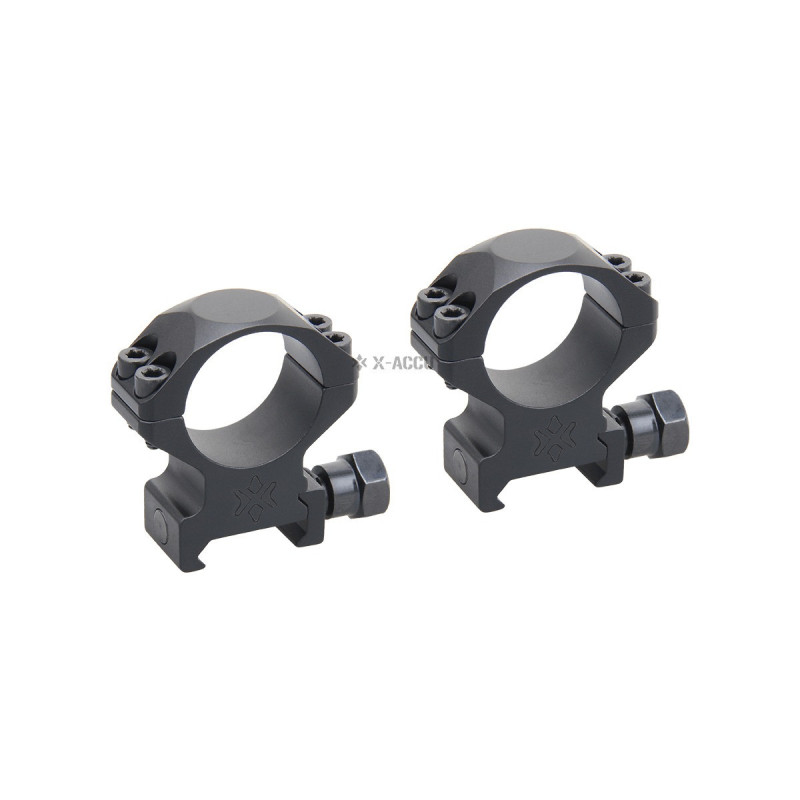

Vector Optics 25.4mm X-Accu 1" Low Profile Picatinny Rings (V-22)
The Vector Optics 25.4mm X-Accu 1" Low Profile Picatinny Rings are built for shooters who demand absolute stability, precision alignment, and a lower optical mounting position for enhanced shooting ergonomics. Designed from high-grade 6061-T6 aircraft-grade aluminum and reinforced with a steel cross-bolt, these rings deliver exceptional durability for real firearm use.
Low Profile Design for Optimal Eye Alignment
With a 1.0" (25.4 mm) height from base to ring center, these rings position your optic closer to the bore axis, providing a more natural cheek weld and improved shooting comfort. This lower profile is ideal for rifles with smaller objective lenses or for applications where a compact and streamlined setup is essential.
Secure Mounting & Precision Alignment
- Ring diameter: 25.4 mm (1 inch) for standard scope tubes
- Precision-machined to ensure perfect optical alignment between both rings
- Alternating nut placement (one on the left, one on the right) while keeping both ring centers perfectly aligned
- Four Torx screws per ring for superior holding strength under heavy recoil
- Steel cross-bolt design for maximum strength and stability
Built for Real Firearms
CNC-machined from premium 6061-T6 aluminum alloy with a tough black matte anodized finish, these rings are built to endure extreme conditions without warping or losing zero. The design ensures long-term reliability for both tactical and hunting applications.
Technical Specifications
| Specification |
Detail |
| Ring Diameter |
25.4 mm / 1 inch |
| Height (base to center) |
25.4 mm / 1.0 inch |
| Ring Width |
16.5 mm / 0.6 inch |
| Weight (net) |
85 g / 3.0 oz |
| Material |
6061-T6 aircraft-grade aluminum with steel cross-bolt |
| Finish |
Black matte anodized |
| Rail Type |
1913 Picatinny |
Torque Recommendations
- Scope ring screws: Do not exceed 18 inch-pounds
- Main mounting nuts: Recommended 25 inch-pounds (maximum 45 inch-pounds)
Included Accessories
- Torx T10 wrench
- Two low profile rings
Practical Applications
- Hunting rifles with low-mounted optics for better cheek weld
- Tactical carbines requiring compact sight alignment
- Precision shooting setups where bore-to-optic height must be minimized
Summary
The Vector Optics 25.4mm X-Accu 1" Low Profile Picatinny Rings combine durability, precision, and a low mounting height to enhance shooting accuracy and comfort. Ideal for hunters, competitive shooters, and tactical operators seeking a secure and streamlined optic mounting solution.
