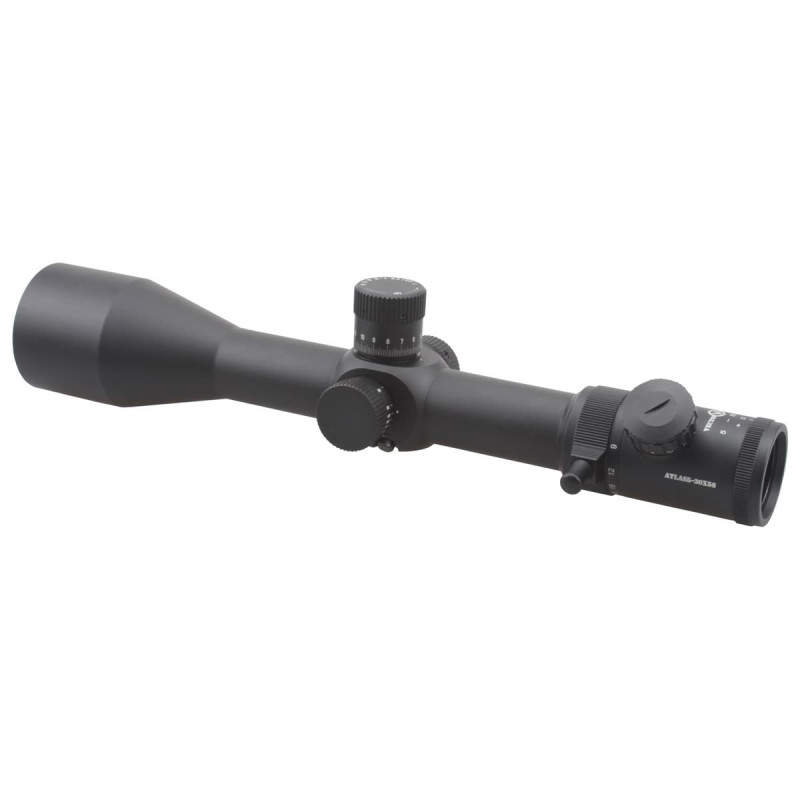

Vector Optics Atlas 5‑30×56 SFP Rifle Scope (SCOL‑04)
Optical & Mechanical Excellence
The Atlas 5‑30×56 SFP is a rugged long-range optic engineered for precision shooters and magnum-caliber rifles. Featuring a stout 35 mm 6061-T6 aluminum monotube and a large 56 mm fully multi-coated (FMC) objective lens, this scope delivers diamond-clear images with high light transmission—even under low-light conditions. The etched VHL-1 reticle with illuminated center dot and tactical 1/8 MOA push-lock turrets offer precise holdovers and adjustments, while the removable power-ring lever enhances usability.
Key Features
- Robust Construction: Shock-tested to 1000 G, waterproof, and fully nitrogen-purged to eliminate internal fogging.
- High-grade Materials: Built from aircraft-quality 6061-T6 aluminum for durability and strength.
- Fast-Focus Eyepiece: Diopter adjustment range of +2 to –2 for crisp reticle clarity.
- Precision Turrets: 1/8 MOA click value, push-lock system, with 85 MOA elevation and windage range.
- Powerful Zoom: 5–30× magnification (6× zoom ratio) covers a broad range of shooting scenarios.
Real‑World Performance
- Long‑Range Hunting & ELR: 56 mm lens and zoom range allow supreme clarity at extended distances—ideal for magnum calibers like .338 Lapua and .50 BMG.
- Competition & Precision Shooting: Fine turrets and precise reticle enable accurate, fast corrections in PRS and tactical matches.
- Versatility: Side-focus parallax (10 yd–∞) and eyepiece diopter make it adaptable to both short and long-range setups.
Technical Specifications
Optical
| Feature |
Specification |
| Magnification |
5–30× |
| Objective Lens |
56 mm |
| Tube Diameter |
35 mm |
| Reticle |
Etched VHL‑1, center dot illuminated |
| Exit Pupil |
11.2–1.9 mm |
| Field of View @100 yd |
23.6–3.8 ft |
| Eye Relief |
101–89 mm (4.0–3.5″) |
| Side Focus / Parallax |
10 yd–∞ |
Mechanical
| Feature |
Specification |
| Click Value |
1/8 MOA |
| Elevation/Windage Range |
85 MOA |
| Illumination Levels |
11 red levels, CR2032 battery |
| Materials |
6061-T6 aluminum, matte finish |
| Waterproof/Fogproof |
IP67, nitrogen-purged |
| Shock Resistance |
1000 G |
| Length |
375 mm (14.8″) |
| Weight |
1000 g (35.3 oz) |
What’s in the Box
- Atlas 5–30×56 SFP Riflescope (SCOL‑04)
- Removable throw lever & sunshade
- Flip‑up lens covers & cleaning cloth
- Tactical high‑profile 35mm or 34mm rings/mount (store‑option)
- CR2032 battery & user manual
Summary
The Vector Optics Atlas 5‑30×56 SFP is a high-magnification, long-range scope built for magnum-caliber shooting and serious competitive use. Durable and packed with tactical features—from the 35 mm tube and large optic to 1/8 MOA turrets, illuminated reticle, and complete environmental sealing—it delivers pro-level performance at a competitive price point.
