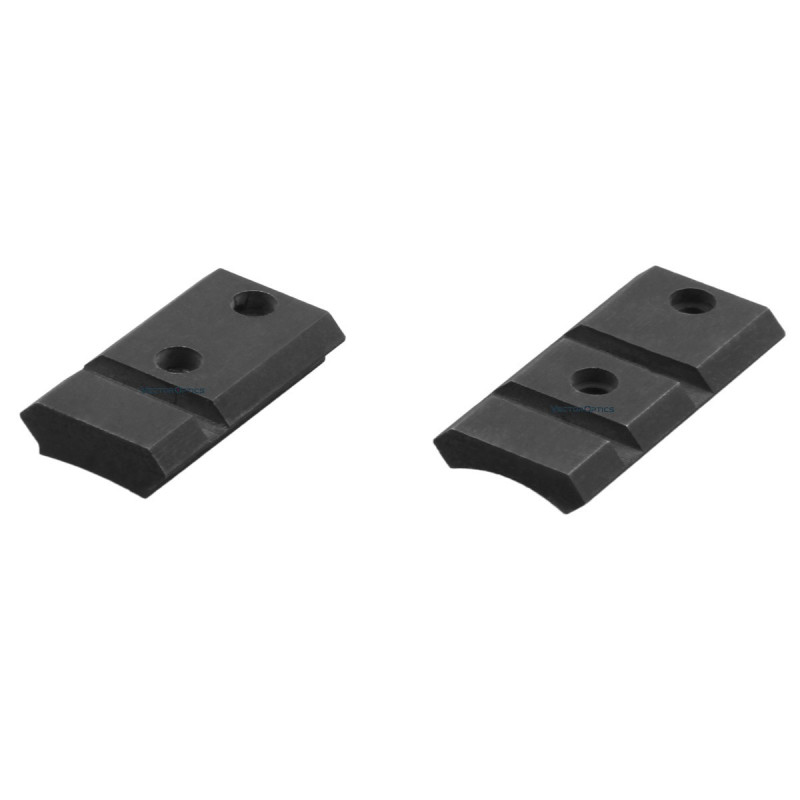

Vector Optics Remington 700 Steel Picatinny Mount (SCRA-69) – Rugged Two-Piece Base for Precision Optics
The Vector Optics Remington 700 Steel Picatinny Mount (model SCRA-69) is a low-profile, two-piece steel base engineered for durable, repeatable optics mounting on bolt-action rifles. Compatible with Remington 700, Howa 1500, Weatherby Vanguard & Series II, and Nosler M48 platforms, it offers precise alignment, robust steel construction, and reliable return-to-zero for demanding field and tactical applications.
Main Features
- Dual-length rails: Includes a 44.5 mm (1.75") long segment and a 36 mm (1.4") short segment for flexible mount placement.
- Precise screw-hole spacing: Short rail spacing 16 mm (0.6"), long rail spacing 22 mm (0.9") to match factory receiver holes.
- Hardened #45 steel: Excellent recoil resistance and dimensional stability under heavy use.
- Ultra-light for steel: Weighs just 58 g (2.0 oz), preserving rifle balance.
- Low-profile Picatinny interface: 21 mm (MIL-STD-1913) rail for universal scope and accessory compatibility.
- Durable matte black finish: Anodized surface for corrosion resistance and reduced glare.
- Complete mount kit: Supplied with T-15 Torx screws and a hex key; 25 in-lb torque recommended.
Ideal Use Cases
Precision Rifle Optics Setup
The low-profile rail creates a clean, rigid foundation for scopes, maintaining alignment and fast return-to-zero—even with frequent mounting cycles.
Compact Tactical Builds
The two-piece design allows partial rail coverage over existing bases, ideal for lightweight optics, night vision, or offset accessories without adding bulk.
Engineering & Build Quality
- Hardened steel construction for long service life under recoil and environmental stress.
- Accurate hole spacing matches factory receiver patterns for secure, wobble-free mounting.
- Anodized finish improves corrosion protection and minimizes reflection in tactical environments.
Included in the Package
- Two-piece steel Picatinny mount (one long and one short rail)
- T-15 Torx mounting screws
- Hex key installation tool
Technical Specifications
| Specification |
Value |
| Long Rail Length |
44.5 mm / 1.75″ |
| Short Rail Length |
36 mm / 1.4″ |
| Screw-Hole Distance (Short) |
16 mm / 0.6″ |
| Screw-Hole Distance (Long) |
22 mm / 0.9″ |
| Material |
#45 Steel |
| Weight |
58 g / 2.0 oz |
| Finish |
Matte Black Anodizing |
| Rail Type |
21 mm Picatinny (1913) |
| Recommended Torque |
25 in-lb |
| Platform Compatibility |
Remington 700, Howa 1500, Weatherby Vanguard & Series II, Nosler M48 |
Summary
The Vector Optics Remington 700 Steel Picatinny Mount (SCRA-69) delivers a secure, low-profile solution for optics on Remington 700 and compatible actions. Its precision two-piece steel design, factory-accurate fit, and lightweight form factor make it an excellent choice for shooters who need consistent zero and streamlined functionality in rugged conditions.
