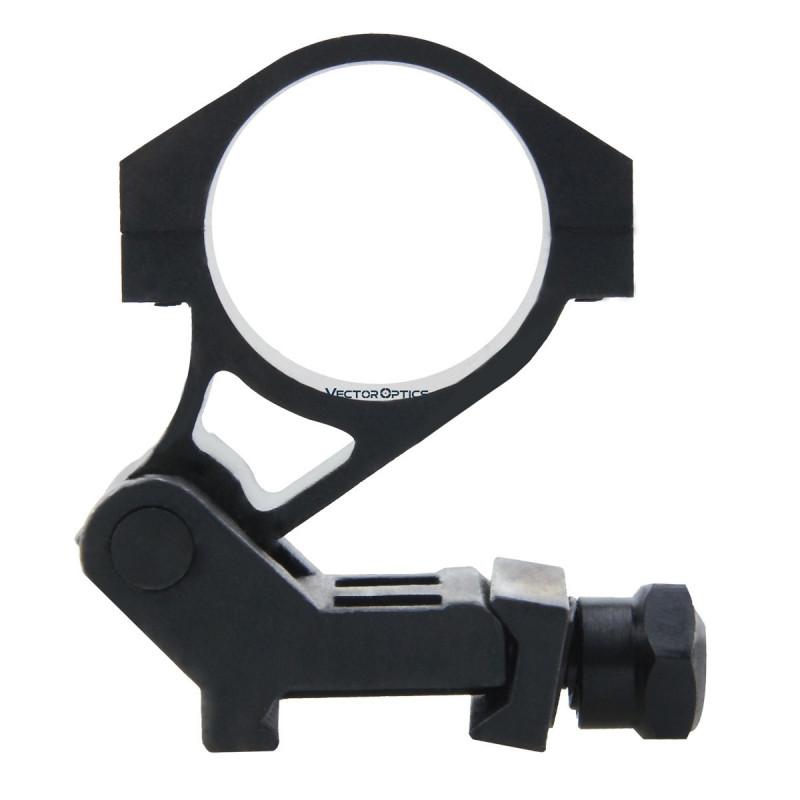

Vector Optics 30 mm Flip-to-Side Picatinny Steel Mount Ring (SCSR-08) – Rugged, Quick-Flip Magnifier Mount for Tactical Versatility
The Vector Optics 30 mm Flip-to-Side Picatinny Steel Mount Ring (model SCSR-08) is engineered for shooters who demand both flexibility and durability. Its full-steel construction and 90° flip-to-side design let you switch instantly between magnified and unmagnified views without re-zeroing—ideal for pairing magnifiers with red dots on modern tactical platforms.
Main Features
- 30 mm Inner Diameter: Securely holds 30 mm magnifiers or similar inline optics.
- Steel Construction: All-steel build resists recoil, wear, and environmental stress.
- 90° Flip-to-Side Mechanism: Quickly pivots the optic out of the sightline for direct red-dot or iron-sight use—no tools required.
- Optimized Dimensions: Overall length 40 mm (1.6″); height 61 mm (2.4″); mount length 32 mm; ring width 40 mm; central height 38 mm (1.5″ bottom to center); ring length 25.4 mm (1.0″); weight 210 g (7.4 oz).
- Picatinny Interface: Standard MIL-STD-1913 rail compatibility for broad platform support.
- Six-Bolt Ring Clamp: Hex-screw clamping (six per ring) for secure, repeatable retention.
- Matte Black Finish: Low-glare, corrosion-resistant coating for field durability.
Real-World Applications
Quick Optic Transition
Flip the magnifier aside in one motion when you need an unobstructed red dot for close targets, then return to magnified viewing for identification and precision.
Precision Retention
Rigid steel chassis and robust clamping help preserve zero after repeated flips, making it suitable for multi-role carbines and long-range transitions.
Mechanical & Build Advantages
- Steel body outperforms typical aluminum mounts for strength and longevity.
- Positive, tool-less flip mechanism provides repeatable positioning and a confident lockup.
- Compact geometry achieves practical height for co-witness while maintaining a low profile.
Package Contents
- Vector Optics 30 mm Flip-to-Side Picatinny Steel Mount Ring (SCSR-08)
- Mounting screws (six)
- Hex/Torx installation tool (as supplied)
Technical Specifications
| Attribute |
Specification |
| Inner Diameter |
30 mm |
| Overall Length |
40 mm / 1.6″ |
| Overall Height |
61 mm / 2.4″ |
| Mount Length |
32 mm / 1.2″ |
| Ring Width |
40 mm / 1.6″ |
| Central Height |
38 mm / 1.5″ (bottom to center) |
| Ring Length |
25.4 mm / 1.0″ |
| Material |
Steel |
| Weight |
210 g / 7.4 oz |
| Mount Interface |
1913 Picatinny Rail |
| Flip Degree |
90° |
| Finish |
Matte black |
| Screws per Ring |
6 |
SEO Image Alt Text Example
Summary
The Vector Optics 30 mm Flip-to-Side Picatinny Steel Mount Ring (SCSR-08) delivers a tough, adaptable mounting solution for magnifier and red-dot combinations. With its steel build, secure six-screw clamp, and fast 90° flip action, it brings dependable flexibility to tactical, competition, and practical rifle setups.
