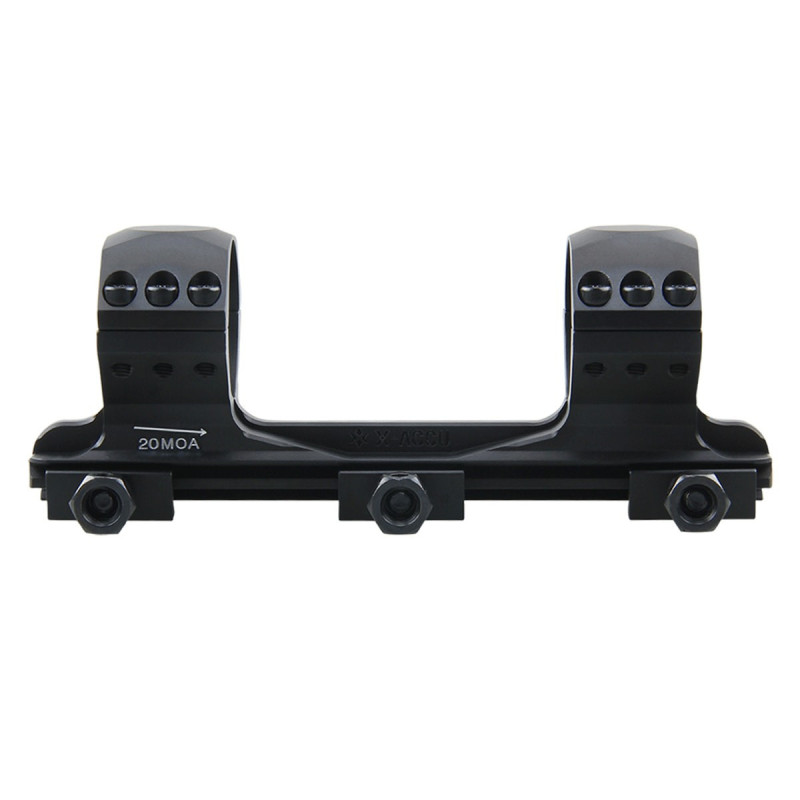

Vector Optics X-Accu 34mm Medium Profile One-Piece 20MOA Picatinny Mount (V-9) – Precision CNC Monoblock for Long-Range Accuracy
The Vector Optics X-Accu 34mm Medium Profile One-Piece 20MOA Picatinny Mount (V-9) is a premium-grade monoblock mount engineered for precision long-range shooting and extreme durability. Designed to accommodate large riflescopes with 34 mm tubes and up to 56 mm objective lenses, this mount ensures flawless alignment, maximum stability, and repeatable accuracy even under the heaviest recoil. Manufactured from 6061-T6 aircraft-grade aluminum alloy and finished with a rugged matte black anodization, the X-Accu delivers professional-level reliability for tactical operators, hunters, and competitive shooters who demand the highest performance from their optics mounting system.
Main Features
- 34 mm Tube Compatibility: Designed to fit modern long-range riflescopes with 34 mm main tubes.
- 20 MOA Cant (≈6 MIL): Built-in elevation compensation extends adjustment range for extreme-distance shooting, allowing more usable scope turret travel.
- Medium Profile, 35 mm Height: From base to ring center, providing clearance for objective lenses up to 56 mm.
- Monoblock Construction: One-piece CNC-machined body maximizes strength, precision, and scope alignment.
- Six Screws Per Ring: Ensures maximum grip and security for heavy-duty optics and large calibers.
- High Torque Capacity: Accepts up to 45 in-lbs on base nuts, while scope ring screws should not exceed 18 in-lbs.
Mechanical Durability & Construction
- 6061-T6 Aircraft-Grade Aluminum: Balances lightweight handling with exceptional toughness, built to withstand magnum-caliber recoil.
- Hard Anodized Black Matte Finish: Scratch-resistant and corrosion-proof surface optimized for field conditions.
- CNC Precision Machining: Guarantees tight tolerances for flawless rail engagement and scope clamping.
- Three Cross-Bolts with Anti-Retreat Design: Provides secure lock-down on the rail, preventing shift under recoil.
- Field-Ready Reliability: Specifically designed for hard and rigorous use in tactical, hunting, and competition environments.
Practical Applications
- Long-Range Precision: Ideal for engaging targets well beyond 500 meters, where elevation compensation is crucial.
- Hunting with Magnum Calibers: Maintains zero under powerful recoil, suitable for dangerous game or high-caliber precision rifles.
- Tactical and Military Use: Rock-solid monoblock ensures durability and confidence in demanding operations.
- Competitive Shooting: Provides consistency, repeatability, and extended turret adjustment for PRS or long-range matches.
Installation Notes
To install, place the mount on a Picatinny rail and secure it with the three integrated cross-bolts. Use the included hex key to fasten clamp nuts, tightening evenly to a suggested torque of 25 in-lbs (maximum 45 in-lbs). Scope ring screws should be tightened evenly across all six screws per ring and must not exceed 18 in-lbs. Proper torque ensures secure clamping while preventing scope damage or misalignment. The mount is supplied with a hex key and comes in a retail package, ready for professional installation.
Technical Specifications
| Characteristic |
Specification |
| Model |
V-9 (SCTM-61) |
| Tube Diameter |
34 mm |
| Overall Length |
154 mm / 6.1 in |
| Overall Height |
59 mm / 2.3 in |
| Mount Length |
154 mm / 6.1 in |
| Ring Width |
50 mm / 2.0 in |
| Ring Length |
26 mm / 1.0 in |
| Gap Between Rings |
70 mm / 2.7 in |
| Central Height |
35 mm / 1.4 in (base to center) |
| Material |
6061-T6 Aluminum Alloy |
| Finish |
Hard Anodized Matte Black |
| Weight |
250 g / 8.8 oz |
| Mount Type |
Picatinny Rail, 21 mm |
| Ring Screws |
6 per ring (12 total) |
| MOA Cant |
20 MOA (≈6 MIL) |
| Torque Limits |
Scope rings: ≤18 in-lbs, Rail nuts: 25 in-lbs suggested, max 45 in-lbs |
| Accessories |
Hex key, retail package |
Summary
The Vector Optics X-Accu 34mm Medium Profile One-Piece 20MOA Picatinny Mount (V-9) is engineered for extreme reliability in long-range precision shooting. With a full CNC-machined monoblock body, 20 MOA elevation, six-screw rings, and a rugged hard-anodized finish, this mount guarantees unmatched stability and performance under heavy recoil. Whether for tactical missions, hunting large calibers, or competitive long-range matches, the X-Accu delivers precision, strength, and repeatable accuracy every time.
