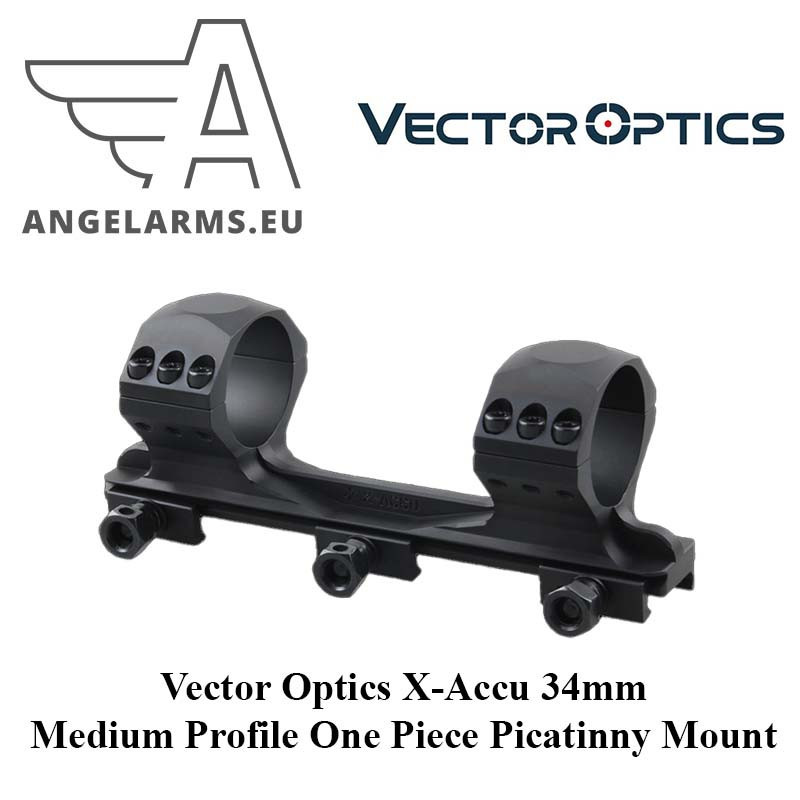

Vector Optics X-Accu 34mm Medium Profile One-Piece Picatinny Mount (V-8) – CNC Precision Monoblock for Tactical and Long-Range Shooting
The Vector Optics X-Accu 34mm Medium Profile One-Piece Picatinny Mount (V-8) is a heavy-duty monoblock mount built to deliver rock-solid stability, precise alignment, and long-lasting durability for demanding shooting applications. Designed for scopes with 34 mm tubes and objectives up to 56 mm, it offers a perfect balance between robust construction and practical usability. With its medium profile height of 35 mm, fully CNC-machined body, and six-screw rings, this mount ensures secure attachment and absolute zero retention even under extreme recoil from magnum and high-caliber rifles.
Main Features
- 34 mm Tube Diameter: Compatible with most modern tactical and long-range scopes built with a 34 mm main tube.
- Medium Profile Height (35 mm / 1.4”): Provides optimal clearance for riflescopes with large 56 mm objective lenses.
- Monoblock One-Piece Design: Guarantees perfect alignment, stability, and strength compared to two-piece mounts.
- Six Screws Per Ring: Maximizes clamping force and secures heavy optics against movement under recoil.
- Full CNC Machining: Ensures consistent precision, durability, and reliability.
- Hard-Anodized Matte Finish: Resistant to scratches, corrosion, and reflections in field conditions.
Mechanical Durability & Build Quality
- 6061-T6 Aluminum Alloy: Aircraft-grade material engineered to deliver high strength while keeping weight manageable at just 250 g (8.8 oz).
- Recoil Resistance: Specifically designed for large-caliber rifles and magnum-class recoil, maintaining zero in the harshest conditions.
- Cross-Bolt Locking System: Features three heavy-duty bolts for solid Picatinny rail engagement.
- Torque Specifications: Scope ring screws should not exceed 18 in-lbs, while cross-bolt nuts can be tightened to a suggested 25 in-lbs (maximum 45 in-lbs).
- Designed for Rigorous Use: Trusted by hunters, tactical shooters, and competitive marksmen for its durability.
Practical Applications
- Long-Range Shooting: Provides the accuracy and stability needed for consistent results at extended distances.
- Hunting with Magnum Rifles: Withstands the recoil of powerful cartridges, ensuring the optic remains firmly in place.
- Tactical and Duty Use: Engineered to perform in harsh environments where reliability cannot be compromised.
- Precision Sport Shooting: Offers repeatable accuracy for PRS and competitive disciplines requiring stable optic mounting.
Installation Notes
Installing the Vector Optics X-Accu V-8 mount is simple and secure. Place the mount onto the Picatinny rail and align the cross-bolts with the slots. Use the supplied hex key to evenly tighten the clamp nuts, applying the recommended torque. Carefully fasten each of the six screws per ring to secure the riflescope without exceeding the specified torque values, ensuring optimal grip without scope damage. The mount comes with a retail package and hex key for straightforward installation.
Technical Specifications
| Characteristic |
Specification |
| Model |
V-8 (SCTM-60) |
| Tube Diameter |
34 mm |
| Overall Length |
154 mm / 6.1 in |
| Overall Height |
59 mm / 2.3 in |
| Mount Length |
154 mm / 6.1 in |
| Ring Width |
50 mm / 2.0 in |
| Ring Length |
26 mm / 1.0 in |
| Gap Between Rings |
70 mm / 2.7 in |
| Central Height |
35 mm / 1.4 in (base to center) |
| Material |
6061-T6 Aluminum Alloy |
| Finish |
Hard Anodized Matte Black |
| Weight |
250 g / 8.8 oz |
| Mount Type |
Picatinny Rail, 21 mm |
| Ring Screws |
6 per ring (12 total) |
| Torque Limits |
Scope rings: ≤18 in-lbs; Rail nuts: suggested 25 in-lbs, max 45 in-lbs |
| Accessories |
Hex key, retail package |
Summary
The Vector Optics X-Accu 34mm Medium Profile One-Piece Picatinny Mount (V-8) is a rugged and precise monoblock mount built for shooters who demand absolute reliability. With its CNC-machined aluminum body, six-screw rings, and optimized torque resistance, it ensures consistent accuracy and strength under heavy recoil. Whether for hunting, tactical missions, or competitive long-range shooting, the X-Accu V-8 provides a dependable foundation for your optics, keeping your scope securely mounted in the most demanding conditions.
