All-In-One Articulating Inspection Camera That Can Look Around Corners
| Specification |
Value |
| Monitor |
|
| Screen |
4.5 in IPS LCD Screen |
| Screen Resolution |
854x480 pixels |
| Image Capturing Resolution |
1920x1080 pixels |
| Video Recording Resolution |
1280x720 pixels |
| Storage |
32GB Micro SD card |
| Port |
USB-C Charging Port |
| Power Source |
3000mAh Lithium Polymer Battery |
| Battery Life |
3-4 hours |
| Camera |
|
| Camera Type |
Dual Lens 2-Way 210° Articulating Probe, Straight-viewing and Side-viewing |
| Camera Diameter |
0.33 in (8.5 mm) |
| Probe Length |
5.08 ft (1.55 m) |
| Probe Stiffness |
Stiff but flexible |
| Megapixel |
1.0 MP |
| Rotating Angle |
210° |
| Field of View |
70° |
| Depth of Field |
0.60 in to 3.94 in (15 mm to 100 mm) |
| LED Light |
8 Bright LED lights |
| Splash, Water, and Dust Resistant |
Rated IP67 (maximum depth of 1 meter up to 30 minutes) under IEC standard 60529 |
| What is in the Package |
|
| Camera |
Yes |
| USB-C Cable |
Yes |
| Carrying Case |
Yes |
| User Manual |
Yes |

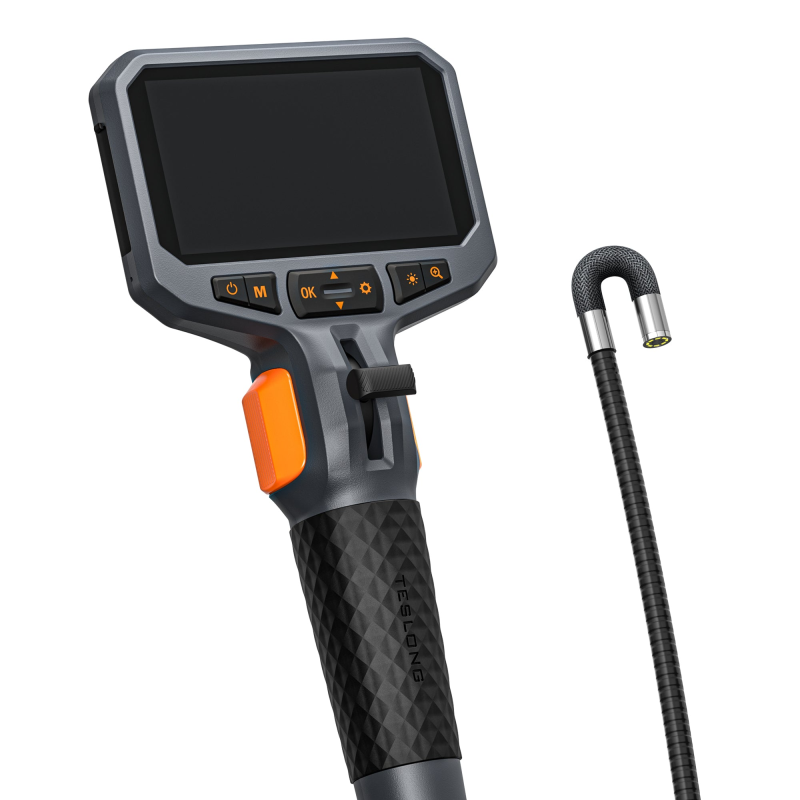

Articulating Dual-Lens Inspection Camera
The TD450S Dual Lens is a portable, handheld, multi-function inspection camera. The camera probe includes two lenses, a forward viewing and side-viewing camera, that can be switched with the press of a button. The articulating probe is controlled by the lever on the handle, allowing it to look in different directions. The monitor can take pictures, record video and audio, a helpful feature to document and share your inspection. This is perfect for many applications, such as inspecting engine cylinders, airplane wings, wall boards, and brake systems.
The 5-foot-long probe is bendable, but holds its shape which allows you to shape it before inserting it into a tight space. Once in position, use the articulation lever to articulate the tip through 210 degrees of movement.
Look Forwards or sideways
This inspection camera's probe design includes dual lenses plus 210 degrees of articulation. See more of everything and maintain the best control, even in hard-to-reach places.
Capture Photos & Videos Or Switch Lenses
The multi-function capture button snaps photos or videos to document your inspection. Long press the capture button to switch between the camera lenses and switch from front view to side view!
Intelligent High-temperature Safety
Using the camera and LED lights may result in the camera working above the ambient room temperature. When performing inspections in an environment such as a hot garage, take note of the device's temperature to avoid overheating. The TD450S activates its Auto Alarm & Shutdown feature when the probe temperature exceeds 158°F (70°C) to prevent any damage
Articulation Lever
The TD450S articulation lever is an efficient and ergonomic means of steering the camera towards a subject in almost any hard-to-reach location.
Other Features
- Built-in microphone
- Built-in 32GB Memory Card
- 8 Bright LED lights and 1 side-viewing LED light
- IP67 waterproof rating
- 3000mAh Lithium Polymer Battery
- Up to 4 hours working time
