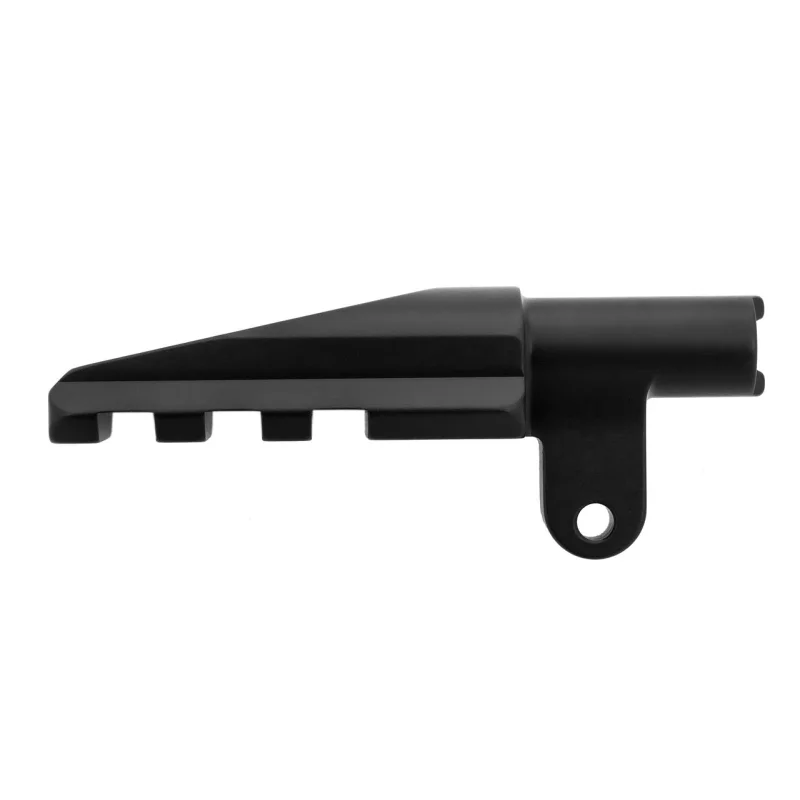

HunTac Blaser R93, Blaser R8 an Mauser M03 Bipod Mount – Picatinny

HunTac Blaser R93, Blaser R8, and Mauser M03 Bipod Mount – Picatinny

Introducing the HunTac Bipod Mount, a robust Picatinny-compatible solution specifically designed for direct attachment to Blaser R93, Blaser R8, and Mauser M03 rifles. This mount is ideal for both synthetic stocks and wood stocks where the front rifle sling mount is secured with a bolt, not a wood screw.

Key Features:

• Direct Fit Compatibility: Engineered for a precise fit on Blaser R93, Blaser R8, and Mauser M03 rifles, ensuring a stable platform for your bipod.
• Enhanced Rigidity: The "step down interface" is designed to rest lightly against the front of the stock when mounted, providing additional stability. For Blaser synthetic stocks, using the included rod can offer extra rigidity and strength.
• Secure Installation: Easily mounts by unscrewing the rifle's original swivel mount. The "step down-interface" is then fastened using a 5mm Allen head screw. For optimal security, we suggest using Loctite® 222 on the screw and the hexagon flange nut on the inside of the stock.
• Picatinny Interface: Provides a standard Picatinny rail for direct attachment of a wide range of bipods and other accessories.

Installation Guide:

1. Unscrew the original swivel mount from your Blaser R93, R8, or Mauser M03 (ensure your stock uses a bolt, not a wood screw, for attachment).
2. Position the "step down-interface" on the front of the stock, making sure it's aligned vertically and rests lightly against the stock.
3. Apply a drop of Loctite® 222 to the 5mm Allen head screw.
4. Fasten the interface using the 5mm Allen head screw and secure it with the hexagon flange nut on the inside of the stock.
5. Tighten the assembly firmly.

Product Specifications:
